Browning | Out-Swing

Browning Vault Door 1878

Sale price  $7,499.00 Regular price  $8,649.00
Product images are for reference only and may not exactly reflect the appearance of the actual safe.
Browning 1878 Style Vault Door | Idaho Safe & Vault

Browning · Vault Door · Enhanced Protection

Heritage Aesthetic. 1-7/8-Inch Door Insulation. 24 Chrome-Plated Bolts. Cast Iron Wheel. Browning 1878 Style Vault Door.

The 1878 Style Vault Door is the heritage-finish version of the Browning clamshell vault door platform. Duo-Formed door construction, UniForce locking system, OmniBarrier protection, 24 chrome-plated 1-1/4-inch bolts, Palusol expanding fire seal, and 1-7/8 inches of door insulation more than the 1-3/8 inches on the Standard and Clamshell models. Available in Metal Glaze finish only with Cast Iron Wheel hardware standard. The 1878 Laser Cut Steel graphic and Metal Glaze Pull Handle are available options. Two configurations: Out-Swing at 910 lbs and In-Swing at 870 lbs, both requiring a 40-inch minimum rough opening. Made in the USA. The decision to choose the 1878 over the Standard or Clamshell is a decision about aesthetic character and enhanced fire insulation depth, made by buyers who have already committed to the vault room architecture and want the door to reflect it.

1-7/8" door insulation · Palusol fire seal 24 chrome-plated 1-1/4" bolts UniForce + OmniBarrier locking Metal Glaze finish · Cast Iron Wheel 2 configurations · 870 to 910 lbs Made in the USA Security level 8 of 10

1878 vs Standard / Clamshell: Same Platform, Enhanced Insulation, Heritage Identity

The 1878 shares the same Duo-Formed door, UniForce locking, OmniBarrier protection, and bolt geometry as the Clamshell vault door. What it adds is a half-inch of additional door insulation (1-7/8" vs 1-3/8") and a distinct heritage aesthetic that is not available in the standard color palette. Metal Glaze finish only, Cast Iron Wheel hardware standard. If you want the same security platform with a paintable finish, the Clamshell is that door. If you want the heritage character and the additional insulation depth, the 1878 is the right call.

Take the Protection Quiz

Buyer Profile

Who the 1878 Style Vault Door Is Built For

The 1878 buyer has already resolved the vault door vs safe question and the clamshell vs standard mounting question. The remaining decision is whether the 1878's heritage finish, Cast Iron Wheel hardware, and enhanced door insulation depth are worth the premium over the standard Clamshell at the same security level. For a vault room going into a finished space where appearance is part of the installation commitment, they usually are. How to confirm whether a vault door fits your situation before comparing models.

Protection Profile

Enhanced Protection, Security Level 8. Same Duo-Formed construction, UniForce locking, OmniBarrier system, and 1-1/4-inch bolt geometry as the standard Clamshell plus 1-7/8-inch door insulation vs the Clamshell's 1-3/8 inches. The additional insulation depth is a meaningful difference in fire resistance at the door level, worth considering for wildfire-exposed properties. How door insulation depth affects vault door fire resistance.

Aesthetic System

Metal Glaze finish only this is not a constraint to work around, it is a finish choice. Metal Glaze is available in multiple colorways. Cast Iron Wheel hardware is standard; the Metal Glaze Pull Handle is available as an option. The 1878 Laser Cut Steel graphic is available for the exterior panel. This is not a safe that blends into its surroundings it is a door designed to be seen as part of the room. How vault room aesthetics factor into the installation decision.

Installation Planning

Requires 40-inch minimum rough opening at 82 inches tall same as the Clamshell configurations. Wall thickness must fall within the 8 to 11-1/2-inch clamshell flange range. Out-Swing at 910 lbs, In-Swing at 870 lbs. The Metal Glaze finish and visible heritage hardware mean the installation route and final placement need to be confirmed for surface protection before delivery. Call 208-454-8038 before ordering. How to confirm your rough opening and route for a 1878 installation.

Comparing the 1878 against the Clamshell?

Both configurations are available for in-person comparison at our Caldwell showroom. The Metal Glaze finish and Cast Iron Wheel hardware are things you assess by looking at the door in context, not from a specification table.

Why a factory-authorized local installer matters for vault door installation

Construction Detail

Enhanced Insulation, Heritage Hardware, and Shared Security Platform

Fire Protection

1-7/8-inch door insulation · Palusol expanding fire seal · 1/2-inch more than Standard and Clamshell models

The 1878 carries 1-7/8 inches of door insulation, compared to 1-3/8 inches on the Standard and Clamshell models. That additional half-inch is meaningful at the door level, particularly for vault rooms in wildfire-exposed communities where the fire scenario may involve sustained heat at the structure rather than a contained house fire. The Palusol heat-activated expanding fire seal closes the gap between the door and frame as temperature rises, preventing heat ingress at the perimeter. Browning vault doors do not carry a minute-based fire rating equivalent to a residential safe. Fire resistance at the door level depends on this insulation and seal system working as designed. The vault room's overall fire protection depends on every boundary surface, not the door alone. How vault door insulation depth translates to real-world fire resistance.

Security Architecture

Duo-Formed door · UniForce locking · OmniBarrier protection · 24 chrome-plated 1-1/4" bolts · internal lock release

The 1878 shares the complete security platform with the Clamshell vault door. Duo-Formed door construction provides structural integrity at the panel level. The UniForce locking system drives all 24 bolts simultaneously from a single mechanism for uniform engagement. OmniBarrier lock protection resists lock-targeting attacks. The 1-1/4-inch diameter chrome-plated bolts engage the frame across the full bolt pattern. External ball bearing hinges support the weight of the door through its full swing. The internal lock release allows anyone inside the vault to open the door from within, regardless of lock state an essential safety provision for any panic room application. The 1878's security advantage over the Clamshell is the additional door insulation depth. The locking architecture and bolt geometry are the same. How the 1878's locking system compares to the standard Clamshell configuration.

Finish, Hardware, and Aesthetic System

Metal Glaze finish only · Cast Iron Wheel standard · 1878 Laser Cut Steel graphic available · Metal Glaze Pull Handle available

Metal Glaze is the 1878's exclusive finish it is not available in primer or the standard Browning color palette. Metal Glaze is available in multiple colorways including Two-Tone Midnight, Two-Tone Steel Dawn, Two-Tone Desert Smoke, Two-Tone Crimson Fade, Black Cherry, Sapphire Blue, and others. The Cast Iron Wheel handle is standard a functional wheel mechanism with heritage styling that operates the door mechanism directly. The Metal Glaze Pull Handle is available as an alternative for buyers who prefer a different hardware profile. The 1878 Laser Cut Steel graphic is an optional exterior panel decoration exclusive to this model. These are not decorative additions to a utilitarian product they are the defining character of a door designed to be part of a finished space rather than a utility installation. How to see the 1878 finish and hardware options in person before you decide.

Common Mistakes

Four Assumptions Worth Correcting Before You Order

Misconception:

"A large safe and a vault door are essentially the same decision at the high end I'll just pick the one with the better specs."

Reality:

A safe and a vault door are fundamentally different commitments. A safe is portable, self-contained, and can move with you. A vault door is a permanent architectural installation the room is the protection container, not the door. A vault door makes sense when a dedicated protected room is more practical than a single large safe, when the room architecture is already part of the plan, and when you will not be moving the installation. If those conditions are not met, the right answer may be a Browning Platinum or TL-30 safe, not a vault door. How to evaluate vault door vs large safe for your specific situation.

Misconception:

"The 1878 is a premium version of the Clamshell it must offer better security in addition to the better finish."

Reality:

The 1878 and the Clamshell share the same security architecture: same Duo-Formed construction, same UniForce locking, same OmniBarrier protection, same 1-1/4-inch bolt geometry, same 24-bolt count. The security difference is the 1-7/8-inch door insulation vs 1-3/8 inches on the Clamshell a meaningful fire protection difference, not a security construction difference. The premium over the Clamshell is the aesthetic system and the enhanced insulation depth. If security is the only variable and the vault room is a utility space, the Clamshell delivers the same bolt architecture at a lower cost. How the 1878 and Clamshell compare at Security Level 8.

Misconception:

"Metal Glaze only means I have limited color options compared to the standard Clamshell."

Reality:

Metal Glaze is a distinct finish system with its own colorway range. The 1878 is available in Two-Tone Midnight, Steel Dawn, Desert Smoke, Crimson Fade, Black Cherry, Sapphire Blue, Titanium Metallic, Hunter Green Metallic, Charcoal Metallic, Putty Gray, Gloss Black, Matte Black, and Primer Black. The Clamshell's primer-and-paint option gives you a custom color range. The 1878's Metal Glaze colorway range is specific and intentional the point is not more color options, it is a distinct heritage finish character that the primer option does not replicate. If you want custom paint, the Clamshell is the right door. If you want Metal Glaze, the 1878 is the only option.

Misconception:

"The Cast Iron Wheel is decorative the important thing is the locking mechanism behind it."

Reality:

The Cast Iron Wheel is functional hardware that operates the door's locking mechanism. It is designed to handle the operating load of a 870 to 910-pound door and its locking system at the weight and leverage required. Its heritage styling is a deliberate design choice, not a cosmetic addition to a different mechanical system. The Metal Glaze Pull Handle is available as an alternative for buyers who want a different operating aesthetic. Both operate the same underlying mechanism. How vault door hardware configurations affect daily operation.

Honest Limits

What the 1878 Covers and What the Room Determines

The 1878 Style Vault Door delivers door-level Enhanced Protection: the Duo-Formed panel, UniForce bolt engagement, OmniBarrier protection system, 1-7/8 inches of door insulation, and Palusol seal. The 1-7/8-inch insulation is the best door-level fire resistance in the Browning vault door lineup. For buyers in wildfire-exposed communities in Western Idaho and Eastern Oregon, the additional insulation depth over the Clamshell is a real protection improvement at the door.

The vault room's complete protection level is still determined by every element of its construction. A 1878 vault door in a room with standard framed walls provides door-level protection and not much more. A 1878 vault door in a reinforced concrete vault room provides the highest combined protection a residential installation can deliver. The door is permanent and the heritage finish is visible both are reasons to plan the room construction to match the door's capabilities before you install it. How to build a vault room that matches the door's protection level.

Protection Scale

Where the 1878 Style Vault Door Sits on the Protection Scale

Security Level 8, Enhanced Protection. The 1878's additional door insulation depth — 1-7/8 inches vs 1-3/8 on the Standard and Clamshell — gives it the highest fire resistance at the door level of the Browning vault door lineup. How all four protection levels compare in construction and fire detail.

Maximum

TL-rated or vault room at highest construction specification. The ceiling above this tier.

Enhanced You are here

Duo-Formed door. UniForce locking. OmniBarrier protection. 24 chrome-plated 1-1/4-inch bolts. 1-7/8-inch door insulation. Palusol fire seal. Metal Glaze finish only. Cast Iron Wheel standard. Two configurations: Out-Swing (910 lbs) and In-Swing (870 lbs). 40-inch minimum rough opening. Security Level 8.

Balanced

Hell's Canyon, 1878 Series, Silver and mid-tier residential safes. Standard and enhanced construction, 60 to 100-minute fire ratings.

Essential

Entry-level residential safes. 14-gauge steel, 30 to 40-minute fire protection. Access control at the entry tier.

Western Idaho & Eastern Oregon

The 1878 in Finished-Space Vault Room Installations

Idaho Safe & Vault has been installing vault doors across Western Idaho and Eastern Oregon for 32 years, with over 3,500 installations across the full product range. The 1878 Style vault door comes up when a buyer has designed a gun room, finished basement vault, or dedicated safe room where the door's character is part of the room's identity. At that point the decision is already made the only remaining question is the swing direction and lock configuration. Why a factory-authorized local dealer matters for vault door installation.

For buyers in wildland-interface communities across the region the Wood River Valley, communities around McCall, the Payette River corridor, and the canyon edges east of Boise the 1878's 1-7/8-inch door insulation depth is the right choice over the Clamshell's 1-3/8 inches if fire exposure is a real scenario for your property. Neither vault door provides a fire-rated guarantee for a full structure loss event, but the additional insulation margin at the door is a genuine difference when the fire arrives. The vault room's wall construction remains the primary fire variable. What our delivery and installation service covers for 1878 vault door installations.

Full Specifications

Technical Specifications

Security level: 8 of 10, Enhanced Protection · Made in the USA

All 1878 Style variants use the clamshell flange mounting system. Rough opening dimensions must be confirmed with a physical measurement before ordering. Confirm wall thickness falls within the 8 to 11-1/2-inch flange adjustment range.

Construction and Security (All Models)
Door construction Duo-Formed door
Locking system UniForce locking system
Lock protection OmniBarrier protection system
Bolt type Chrome-plated, 1-1/4" diameter
Total locking bolts 24 (both configurations)
Lock configurations UL Listed mechanical combination lock · UL Listed electronic keypad lock · Biometric fingerprint lock
Hinges External ball bearing hinges
Safety feature Internal lock release (opens door from within vault)
Standard hardware Cast Iron Wheel handle
Optional hardware Metal Glaze Pull Handle
Optional graphic 1878 Laser Cut Steel graphic (exterior panel)
Fire insulation 1-7/8" on door
Fire seal Palusol expanding fire seal
Finish Metal Glaze only (multiple colorways available)
Mounting system Clamshell flange, adjusts to wall thickness 8" to 11-1/2"
Country of origin Made in the USA
Model Dimensions, Weight, and Rough Opening

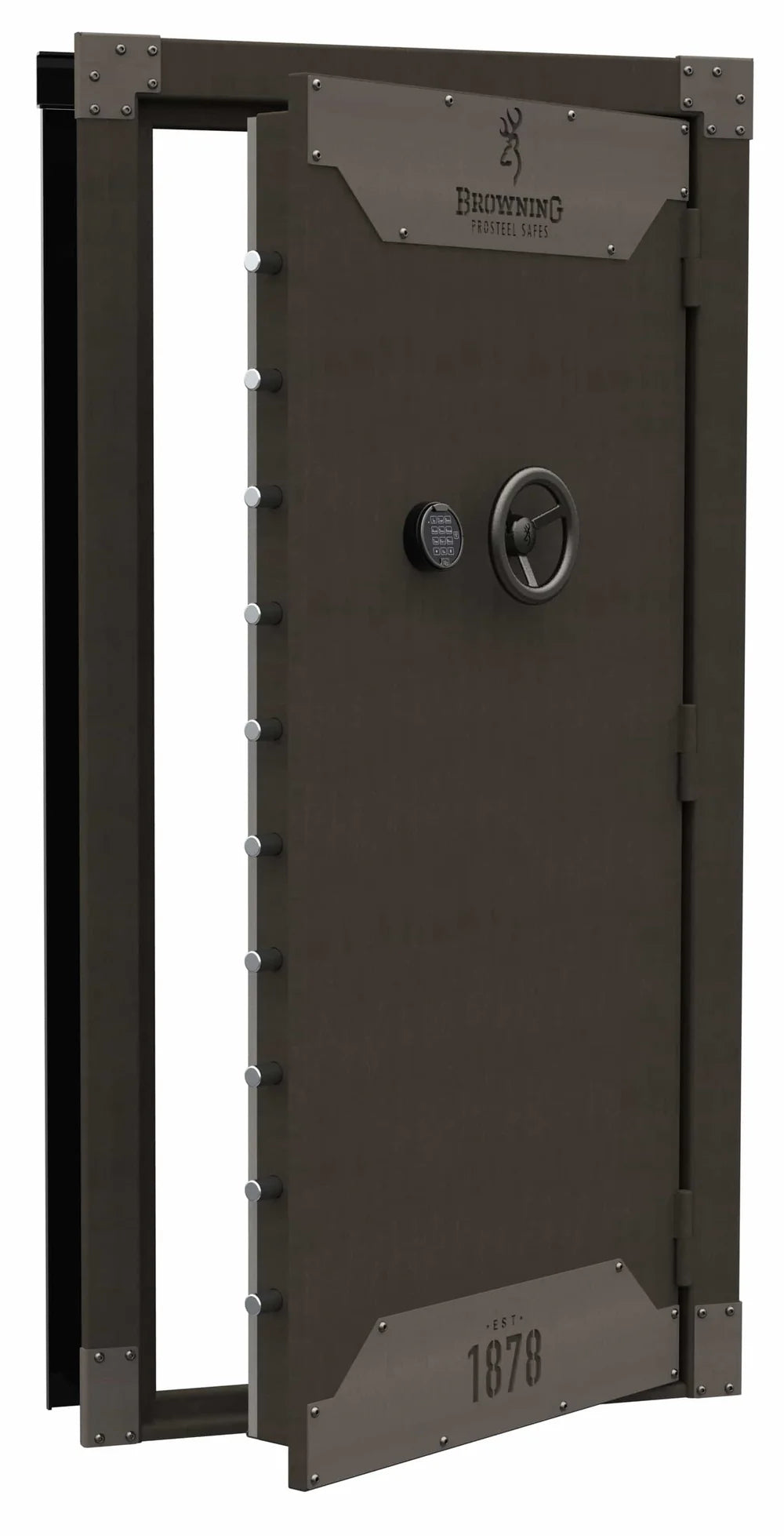

1878 Out-Swing Door
Exterior dimensions 42-3/4" W x 83" H
Weight 910 lbs
Minimum rough opening 40" W x 82" H
Swing direction Out-swing

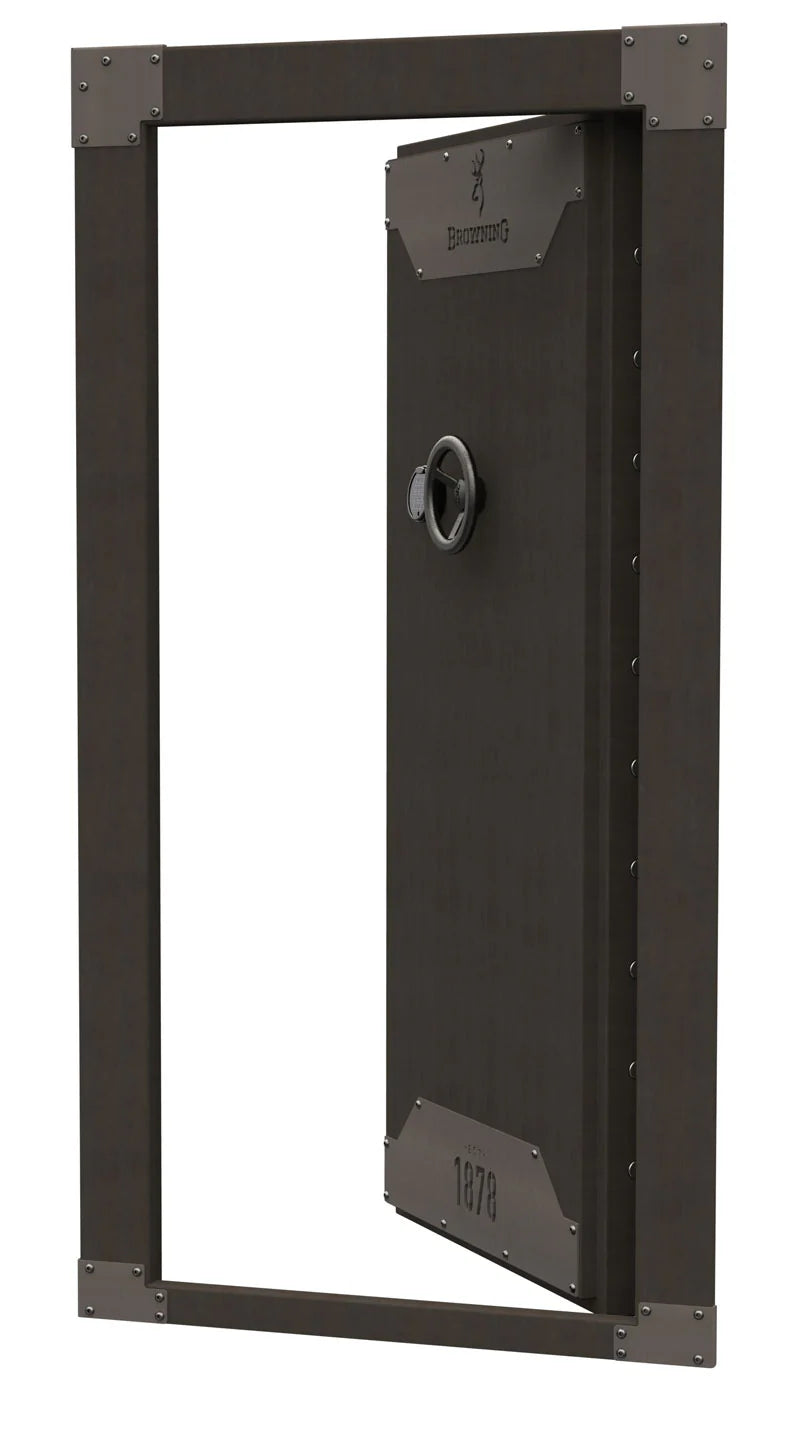

1878 In-Swing Door
Exterior dimensions 42-3/4" W x 83" H
Weight 870 lbs
Minimum rough opening 40" W x 82" H
Swing direction In-swing (confirm floor clearance inside vault before ordering)

Fire insulation depth (1-7/8") is per input packet, noted as "Enhanced insulation vs Standard and Clamshell models." Browning catalog page appears to list 1-7/8" for all vault door models Jason to confirm the Standard/Clamshell vs 1878 insulation differential with Browning before publishing.

Installation and Delivery

Planning a 1878 Installation: What Changes Compared to a Standard Clamshell

The 1878 uses the same clamshell flange mounting system and the same 40-inch rough opening requirement as the standard Clamshell. The installation process is structurally identical the additional planning considerations are about the Metal Glaze finish and Cast Iron Wheel hardware. How to plan your vault room entry for a 1878 installation.

  • Rough opening: 40 inches wide by 82 inches tall minimum. Measure the actual clear opening, not the nominal framing size. Wall thickness must fall between 8 and 11-1/2 inches for the clamshell flange to seat correctly.
  • Surface protection on delivery: The Metal Glaze finish is a finished surface. Floor protection on the delivery route from the exterior to the installation location is a standard part of our delivery process for 1878 installations. Confirm with us before delivery what the floor surface is on the route and at the final placement location.
  • In-swing clearance: The In-Swing configuration requires unobstructed floor clearance inside the vault for the full door arc. Measure the interior clear radius from the hinge point before ordering.
  • Access path: At 870 to 910 lbs, the delivery and installation requires the right equipment and a clear path to the installation location. Measure every doorway, hallway turn, and floor transition on the route before delivery is scheduled.
  • Lock configuration selection: Mechanical combination, electronic keypad, and biometric fingerprint are all available. For finished-room installations, the lock configuration is often a daily-use decision. All three are available to test at our Caldwell showroom before you commit.

Call 208-454-8038 before ordering. Why professional vault door installation matters at this weight class.

Caldwell Showroom

See the 1878 and Clamshell Together

The Metal Glaze finish and Cast Iron Wheel hardware are things you have to see in person to evaluate against the standard Clamshell's primer finish. Photographs convey neither the finish quality nor the hardware weight. Most buyers who are deciding between the 1878 and the Clamshell for a finished-room installation resolve the question in about 10 minutes looking at both in context.

"The 1878 comes up when someone has already designed the room. The protection question is already answered. They are choosing the door that belongs in the space they built. When you hold the Cast Iron Wheel and look at the Metal Glaze finish next to the standard Clamshell, the decision usually makes itself."

Jason, Idaho Safe & Vault, 23 years

What to expect when you visit our Caldwell showroom · How to evaluate your rough opening and route for a 1878 installation

Decision Guide

1878 Style, Clamshell, or Standard?

The 1878 is right if:

  • Your vault room is a finished space a gun room, dedicated vault room, or basement installation where the door's character is part of the room's identity.
  • Metal Glaze finish in one of the available colorways fits the room's aesthetic direction. You have confirmed the colorway at the showroom or through a sample before ordering.
  • Your property has meaningful wildfire exposure and the additional half-inch of door insulation (1-7/8" vs 1-3/8") is a relevant protection improvement for your scenario.
  • Your rough opening is 40 inches wide by 82 inches tall and your wall thickness falls in the 8 to 11-1/2 inch range.

Choose the Standard or Clamshell instead if:

  • Your vault room is a utility space a garage or basement room where aesthetics are not part of the installation decision. The Clamshell delivers the same security platform with a paintable primer finish at a lower cost.
  • You want a custom paint color that matches your room's finish exactly. The Clamshell's primer-ready finish gives you full custom color range. The 1878 is Metal Glaze only.
  • Your rough opening is 36 inches wide and 83 inches tall that dimension fits only the Standard Out-Swing.

How to confirm the right vault door configuration for your installation.

Common Questions

Frequently Asked Questions

When does a vault door make more sense than a large safe?

A vault door makes more sense than a large safe when you have a dedicated room that can be converted to protected use, when the volume of what you are protecting exceeds what a single safe can hold, or when a panic room capability is part of the security plan. A vault room behind a 1878 Style vault door can protect more contents at a higher combined protection level than any single residential safe, including the Browning Platinum and TL-30 but only when the room is built to the right standard. If you are storing a large firearms collection alongside significant jewelry, documents, and valuables, and you have a room that can be built or converted to vault specification, a vault door often delivers better protection per dollar than stacking multiple high-end safes. If you have a smaller collection and no suitable room, a Browning TL-30 or Platinum is the right answer. How to evaluate vault door vs large safe for your specific situation.

Will a vault door installation require structural reinforcement?

It depends on what the door is being installed into. For new construction with a correctly sized rough opening framed in CMU block or poured concrete, structural reinforcement is part of the build. For retrofit into an existing wood-framed wall, the wall substrate must be capable of supporting the door's weight load through the clamshell flange, and any framing modifications to achieve the 40-inch rough opening require structural consideration. A standard interior wall framed with 2x4 or 2x6 lumber and drywall will need reinforcement to carry the clamshell installation load at 870 to 910 lbs. This is a structural assessment that should happen before the order is placed, not after delivery. We walk through this with you before the order is finalized for any installation involving retrofit framing.

What justifies the premium of the 1878 over a standard Clamshell vault door?

Two things: 1-7/8-inch door insulation vs 1-3/8 inches on the Clamshell, and the heritage aesthetic system Metal Glaze finish, Cast Iron Wheel hardware, and 1878 Laser Cut Steel graphic. The insulation difference is a real protection improvement at the door level, particularly relevant for wildfire-exposed properties. The aesthetic premium is the more significant cost driver for most buyers it is the cost of a door designed to be part of a finished space rather than a utilitarian installation. If neither the additional insulation nor the Metal Glaze finish is relevant to your installation, the Clamshell delivers the same Security Level 8 architecture at lower cost.

How permanent is a vault door installation compared to anchoring a large safe?

A vault door is significantly more permanent. An anchored safe can be unbolted and moved the installation is substantial but reversible. A vault door installation modifies the rough opening of the wall, pours or anchors a frame system into the structure, and becomes a fixed architectural element. Removing a vault door requires structural work to the opening and potentially to the surrounding wall framing. If you anticipate selling the property, relocating, or changing the room's use, a vault door makes the protected space part of the property, not part of your equipment inventory. Many buyers treat this as an advantage a properly installed vault room increases the property's security value. But it is a different commitment than an anchored safe, and the decision should be made with that permanence in mind.

Is a safe room overkill for a residential home?

Not for the right situation. A vault room behind a 1878 Style vault door is a practical installation for a serious firearms collection that has outgrown what a single safe can hold, for buyers who want a dedicated protected space for a mix of valuables that requires more volume and organization than any safe interior provides, or for buyers who want a panic room capability for home invasion or severe weather scenarios. In Western Idaho and Eastern Oregon, properties with significant wildfire exposure, rural locations with extended law enforcement response times, and mountain community seasonal properties where extended unoccupied periods are normal all represent practical vault room applications. The question is whether your collection size, property profile, and use case justify the permanent architectural commitment not whether a safe room is inherently excessive for residential use. For most buyers evaluating a 1878 Style vault door, that question has already been answered before they get to the door selection.

Keep Reading

Three Guides for Vault Room Planning

Vault door vs. large safe: how to evaluate which commitment fits your situation

The criteria that distinguish a vault room decision from a large-safe decision: room availability, collection volume, permanence, and what each commitment delivers for your specific collection and property.

Read the Guide

What makes a vault room secure beyond the door wall construction, ceiling, and floor

How to build the room behind the door to match the door's capability, and what construction standard to target for your specific threat model and budget.

Read the Guide

How fire ratings and insulation depth translate to real-world vault room fire protection

What door insulation depth means for fire resistance, how it differs from a safe's certified fire rating, and what the surrounding room construction determines about the vault room's overall fire protection.

Read the Guide

Next Step

Ready to Compare the 1878 and Clamshell in Person?

Both vault door configurations are available to see at our Caldwell showroom. For the 1878, the Metal Glaze finish and Cast Iron Wheel hardware are things that resolve the decision in person rather than from a spec page. Bring your room dimensions and rough opening measurement. For any installation involving a retrofit into existing framing or a non-slab floor at the installation location, call us before you order.

Call 208-454-8038 or visit 5602 Cleveland Blvd, Caldwell, ID 83607. Mon–Fri 10am–6pm, Sat 10am–4pm.
