AMSEC DSF Series Depository Safe

American Security | DSF3214: 32.25″H x 14″W x 14″D

American Security DSF Series Commercial Safe

DSF2014: 20.25″H x 14″W x 14″D

$753.00

1/6

American Security DSF Series Commercial Safe

$753.00

ⓘ Product images are for reference only and may not exactly reflect the appearance of the actual safe.

Product Overview

Front-Load Depository Safes for Businesses That Need Secure Cash Drops in a Tight Space

The AMSEC DSF Series is a line of front-load depository safes built for businesses where space is limited and the primary need is keeping cash off the counter and out of reach. Four models from 84 to 155 lbs and 0.74 to 1.5 cu. ft. of interior capacity cover a range of installation profiles, from a compact 14-inch-wide under-counter unit to a wider 16-inch floor model. Employees drop cash, checks, and envelopes through the front hopper without opening the main door. The B-rate steel construction, 1/2-inch solid steel plate door, three 1-inch locking bolts, hardened steel hardplate, and spring-loaded relocking device all address the forced-entry risks a business with cash on premises faces overnight.

Idaho Safe & Vault carries the full DSF Series lineup in Caldwell: the compact DSF2014 (84 lbs, 0.74 cu. ft.), the DSF2714 (96 lbs, 1.5 cu. ft.), the DSF3214 (138 lbs, 0.98 cu. ft.), and the wider-profile DSF2516 (155 lbs, 0.88 cu. ft.). All four are available for consultation at our Caldwell showroom.

Construction: B-rate · 11-gauge body · 1/2" plate door Security level Lock: UL Listed ESL10 electronic keypad Four sizes: 84 / 96 / 138 / 155 lbs Origin: Made in the USA

Full specifications · Common questions · Understand which protection factors matter most for your business

Where This Fits

The DSF Series is the right product for small businesses that need a secure cash drop point and have a constrained installation space or budget. Model selection within the lineup depends on your installation dimensions and deposit volume. It is not the product for a business whose insurance policy specifies a body-level UL burglary certification, or for an operation with high daily cash volume and multiple shifts. The DSF's UL listing applies to its electronic lock, not the safe body. If your situation calls for body-level UL burglary certification, the AMSEC BWB Drop Series is the right step up. What the difference between a UL Listed lock and a UL-rated safe body actually means for your situation.

Three lists below will tell you whether this safe fits your operation, where to step back, and when you need something higher.

Who It Fits

Who the AMSEC DSF Series Fits

Read these three lists and you will know whether the DSF Series fits your operation, where a simpler solution is sufficient, or where your cash volume and risk profile call for something higher.

This Is Right For You If

You run a small retail, food service, or service business and need a place to secure cash during and after operating hours that is more resistant to forced entry than a register or a lockbox.
Space is the primary constraint. The three 14-inch-wide models (DSF2014, DSF2714, DSF3214) fit in locations where the BWB Drop Series at 20 inches wide simply won't: a narrow under-counter slot, a small back-office corner, or inside an existing cabinet. The DSF2516 at 16 inches wide and 20 inches deep serves a different installation profile. How to match safe dimensions to your specific installation space.
Your insurance policy does not specify a body-level UL burglary rating, or your cash on-premises amount falls below the threshold that triggers a rated-safe requirement. Confirm with your broker before purchasing. How to match a safe to your actual insurance and risk requirements.
You need employees to drop cash without access to the main safe. The front-load hopper and auto bolt detent handle that workflow: a closed door is a locked door, and the deposit compartment holds dropped funds until management retrieval.
Budget is a real constraint and B-rate construction in a compact form factor is the right balance for your operation's size and cash volume.
Your deposit items are standard cash envelopes or small cash bags. The hopper accepts packages up to 10-1/2" H × 2-3/4" W × 4" D on the 14-inch models. Thicker or wider items may not fit. Measure your standard deposit packaging before ordering. Confirming what your operation actually needs to secure before choosing a safe type.

Not The Right Fit If

Your insurance policy requires a UL-rated safe body (UL B-Rate with body certification, or UL RSC). The DSF's UL listing is on the electronic lock only. If your policy language specifies a body-rated safe, this product may not satisfy that requirement. Verify with your broker before ordering.
You need fire protection. The DSF Series carries no fire rating. If your lease, policy, or operating environment requires documented fire protection for cash or documents, a different product is required.
Your daily cash volume is high enough that even the largest DSF model's capacity fills quickly, or you need a separate interior locker compartment to segregate deposits by shift. The BWB Drop Series with its larger interior and interior locker is built for that workflow.
You drop bulk cash bags, till trays, or larger deposit packages. The 2-3/4" hopper width limits what can be deposited. If your standard deposit doesn't fit that dimension, this safe creates a workflow problem rather than solving one. Matching safe type to actual workflow before committing.

Consider Stepping Up If

Your insurance policy specifies UL B-Rated body certification for cash coverage. The AMSEC BWB Drop Series carries body-level construction certification alongside the same deposit workflow, in a wider footprint.
Your operation has grown past what the DSF lineup covers. A business that now runs multiple shifts with higher daily receipts and needs a separately locked deposit compartment to segregate shift drops has outgrown what any DSF model efficiently supports.
You need a wider hopper opening to accommodate your deposit packaging. The BWB Drop Series accepts packages up to 11-1/2" wide versus the DSF's 2-3/4".

Where to go: The AMSEC BWB Drop Series is the next step up in the IS&V commercial lineup: more interior capacity, body-level construction certification, and a wider deposit opening. Talk to us about whether the DSF or BWB fits your operation.

Not sure the DSF is the right fit for your operation?

The decision between DSF models, and between the DSF and the BWB Drop Series, usually comes down to four questions: what your installation dimensions are, what your insurance requires, how wide your deposit packaging is, and how much interior capacity your daily volume needs. A five-minute phone call resolves all four.

See How to Choose the Right Safe Visit the Showroom

The Value Case

What B-Rate Construction in a 14-Inch Footprint Actually Provides

The DSF Series occupies a specific position in the commercial safe market: real burglary-resistant construction in compact form factors that larger commercial safes cannot match on footprint. The question is not whether it's better than a larger safe. It's whether its construction is appropriate for your operation's actual risk.

What many small business owners start with: A lockbox, a cash register with a locked drawer, or a basic safe without construction ratings. These provide no meaningful resistance to a determined forced-entry attempt. Cash in a register drawer is accessible to anyone who can pull or pry the drawer open.

What DSF Series construction adds: An 11-gauge formed high-strength steel body, a 1/2-inch solid steel plate door recessed into the frame to eliminate the pry gap, three 1-inch diameter chromed steel bolts engaging automatically on door close, a formed door jamb engineered to resist sledgehammer attack, a hardened steel hardplate over the lock mechanism, and a spring-loaded relocking device that triggers if the lock is punched out. That package is meaningfully more resistant than a lockbox or a basic safe. It is not equivalent to a UL-rated body certification. What it is: honest B-rate construction in practical compact footprints, built in the USA, across four models sized for different installation environments. How B-rate construction compares to higher commercial ratings and what each tier actually tests.

Security construction: 11-gauge high-strength steel body. 1/2-inch solid steel plate door, recessed for pry resistance. Formed door jamb, sledgehammer-resistant. Three 1-inch chromed steel bolts, 3-way engagement, auto bolt detent on close. Hardened steel hardplate. Auxiliary spring-loaded relocking device.

Deposit workflow: Front-load hopper with dual anti-fish saw-tooth baffle. Maximum package: 10-1/2" H × 2-3/4" W × 4" D. Auto bolt detent means a closed door is a locked door: no separate locking action required from employees. Deposits fall into a secured interior compartment accessible only when the main door is opened with the electronic combination. How deposit safe workflow maps to business cash handling operations.

Honest limits: The DSF Series does not carry a fire rating. Its UL listing is on the electronic lock, not the safe body. At 96 lbs unanchored, it is portable enough to be removed with a hand truck if not bolted down. Anchoring through the four pre-drilled bolt holes is the step that converts a resistant safe into a fixed one. All four of these limits are solvable or acceptable at a specific business size and risk level, and they are worth knowing before you buy.

Idaho Safe & Vault Perspective: The DSF is the safe we recommend when the business is clear on what it needs: a secure drop point in a tight space, at a realistic cost, without requirements that demand a larger or higher-rated product. When a business owner comes in thinking they need "just a small safe for the back office," a DSF model is usually where the conversation lands after we understand their workflow, their space, and what their insurance actually says. If the answer to all three is straightforward, so is the product. Why working through those three questions with a factory-authorized dealer saves money compared to guessing and replacing.

With the construction and limits clear, here is what the DSF Series protection profile delivers and where it stops.

Common Mistakes

What Business Owners Get Wrong About Entry-Level Depository Safes

Three assumptions cause the most problems when small business owners buy a depository safe at this tier. Each one leads to either an insurance gap, an operational mismatch, or a false sense of protection that the product doesn't deliver.

Misconception:

"It says UL Listed on the lock, so the safe must be UL certified."

Reality:

The UL listing on the DSF Series applies to the ESL10 electronic lock. That certification verifies the lock mechanism passed independent testing for manipulation resistance, cycle count, and temperature exposure. It says nothing about the safe body, door, or bolt system. If your insurance policy requires a UL-rated safe body, the DSF does not satisfy that language. Ask your broker whether your policy specifies "UL Listed lock" or "UL-rated safe." Those are different requirements that point to different products. How UL lock certification and UL safe body certification differ and which one your policy is likely asking for.

Misconception:

"At 96 lbs it's too heavy to steal. I don't need to anchor it."

Reality:

96 lbs is manageable for two people with a hand truck or appliance dolly, which are common items in a delivery van or pickup truck. A business break-in with a vehicle often involves exactly that equipment. An unanchored 96-pound safe can be loaded and removed in under two minutes. Anchored through its four pre-drilled bolt holes into a concrete slab or structural floor, it becomes significantly harder to remove quickly. At this weight class, anchoring is the most important installation step you can take. We recommend it on every commercial install and handle it for customers who want us to.

Misconception:

"The hopper takes standard deposits. My envelopes and cash bags will fit."

Reality:

The DSF hopper opening is 2-3/4" wide. Standard bank envelopes and flat cash envelopes fit. Wider zipper deposit bags, thick currency straps, and most cash till inserts do not. Before purchasing, measure your typical deposit packaging against the 2-3/4" width. If your operation regularly drops bulkier items, the BWB Drop Series with its wider hopper opening (up to 11-1/2" wide) is the correct product. A hopper your deposits don't fit is not a depository safe in practice.

Misconception:

"I can always upgrade later if this doesn't meet my insurance requirements."

Reality:

Upgrading means paying twice: the cost of the DSF, plus the cost of the replacement, plus the installation labor for both. Determine your insurance requirement before purchasing, not after a claim denial. If your policy requires a body-rated UL safe, buy the BWB Drop Series now. If it doesn't, the DSF is a cost-effective fit. The difference in upfront cost between the two is significantly less than the cost of replacing a non-qualifying safe after a loss. How to compare commercial safe options against your actual requirements before buying.

With those clarified, here is what the DSF Series actually delivers in a business setting and where its limits are.

Protection Profile

What Entry-Level Commercial Depository Protection Actually Delivers

The DSF Series protection profile covers the scenarios most common in small business cash theft: opportunistic forced entry during a break-in, an employee or passerby attempting to pry the door, and grab-and-run theft of an unsecured safe. The 1/2-inch door, formed jamb, and auto-locking bolt system address the first two. Anchoring addresses the third. Where this tier stops is against a deliberate, extended attack with heavier tools on an unoccupied property.

No fire protection is built into this product. If fire is part of your risk scenario, a separate solution is required.

Burglary Resistance

B-rate construction · 1/2" recessed door · 3-bolt auto-locking · hardplate and relocker

B-rate construction resists the attack methods common in small business break-ins: prying, hammering, drilling, and punching. The recessed door eliminates the leverage gap. The formed door jamb addresses sledgehammer attack at the frame. The hardplate and relocker address drill-and-punch attacks on the lock. For a small business with modest cash on premises overnight, this construction significantly raises the difficulty and time required for a forced entry, which is the practical effect that matters in most retail and food-service robbery scenarios. How entry-level commercial construction compares to higher-rated safes in a real forced-entry scenario.

Deposit Workflow Security

Front-load hopper · dual anti-fish baffle · auto bolt detent · no main-door access required for drops

The dual anti-fish saw-tooth baffle prevents retrieval of deposited items from the hopper slot. The auto bolt detent means the door locks the moment it is fully closed: no employee action required. Deposits accumulate in the interior compartment and are accessible only when the main door is opened with the ESL10 combination. For a small operation where one or two people handle the register but only the owner or manager should access the safe, this workflow removes the need for any employee to know the safe combination while still securing cash throughout the day.

This matters most if:

Small operation, tight space, modest daily cash volume, no body-level UL requirement in your insurance policy

The DSF Series fits best when the primary goal is a secure drop point in a constrained space: a single-location retail shop, a food service counter, a small service business with one register. The four models give you choices between different heights and footprints within that same use case. The construction is appropriate for a business where daily cash volume is manageable, overnight storage needs are modest, and the installation space won't accommodate a wider safe. This is not the right product for a multi-shift high-volume operation. It is the right product for a business that needs more than a lockbox and less than a full-capacity commercial unit.

This becomes limiting when:

Body-level UL requirement, high cash volume, bulk deposit packaging, or extended unoccupied property overnight

The DSF's limits are specific and predictable. A body-level UL certification requirement points to the BWB Drop Series. A hopper too narrow for your deposit packaging points to the BWB Drop Series. A cash volume that fills 1.5 cu. ft. quickly, or a location unoccupied overnight in a high-theft area, points to the BWB Drop Series. Knowing which limit applies to your situation is the decision, not the product itself. How to compare the DSF against the BWB Drop for your specific operation.

Here is where the DSF Series sits on the full protection scale.

Protection Scale

Where the AMSEC DSF Series Sits on the Protection Scale

The DSF Series sits at the Access Control tier, the entry point for commercial cash security. It provides meaningful forced-entry resistance in a compact footprint without the body-level certification requirements that higher tiers carry. Above it, the BWB Drop Series adds body-level construction certification and greater interior capacity for businesses whose requirements demand more.

Maximum Protection TL-30 certified commercial vault construction. AMSEC ACF Series.

Enhanced Protection TL-15 or higher. High-value commercial cash requirements.

Balanced Protection UL B-Rate body certification. AMSEC BWB Drop Series. Wider hopper, larger interior.

Essential Protection B-rate construction without body-level UL certification. Entry commercial safes.

Access Control DSF Series – You are here B-rate construction · 11-gauge body · 1/2" plate door · 3-bolt auto-locking · front-load hopper · four models: DSF2014, DSF2714, DSF3214, DSF2516

How all protection tiers compare in construction and certification

Idaho Safe & Vault's 32 years of commercial and residential safe experience, and what that means for the purchase conversation and the service relationship after installation.

Idaho Safe & Vault

Why Buy the AMSEC DSF Series From Idaho Safe & Vault

A compact commercial safe at this price point can be purchased from several sources. What a factory-authorized AMSEC dealer provides that a general retailer or online seller doesn't is the conversation before the purchase and the service relationship after. Before the purchase: whether the DSF is actually the right product for your insurance requirement, your deposit packaging, and your installation space, or whether you need the BWB Drop Series instead. After the purchase: lock service, code changes when employees turn over, and a direct line to manufacturer support if anything needs attention. Those post-purchase needs are more common than most business owners expect in the first two years of owning a commercial safe. What a factory-authorized dealer relationship provides that a direct-purchase transaction doesn't.

Factory-authorized AMSEC dealer with direct manufacturer access and accurate product specifications.
In-house lock service and ESL10 code management. Employee turnover means code updates. We handle that in Caldwell without routing through a national service call system.
Commercial installation experience: anchoring, under-counter positioning, and substrate assessment on every delivery. At 96 lbs, the DSF is manageable but anchoring correctly to the right substrate is a specific skill.
Caldwell showroom with the DSF Series available for comparison against the BWB Drop Series and the full AMSEC commercial lineup, so you can make the decision after seeing both rather than before.
Straight answers about what this product does and doesn't certify. No overselling. If the DSF isn't right for your situation, we'll tell you that before you order.

Small business context in our service area: Western Idaho and Eastern Oregon has a dense layer of small retail and food service operations across the Treasure Valley, the canyon communities, and the rural service corridors along I-84. These businesses face the same cash management questions as larger operations with smaller margins for error. We've had enough of those conversations over 32 years to know which questions to ask first: what the insurance policy says, what the typical deposit looks like, and where the safe needs to go. What our delivery and installation service includes for commercial accounts.

The DSF Series's dimensions and interior in detail, and what those numbers mean for the actual deposit workflow in a small business.

Real-World Use

How the DSF Series Works in a Small Business Setting

How the Deposit Workflow Functions

The front-load hopper sits at the top of the safe. Employees drop cash envelopes through the hopper opening; they pass through the dual anti-fish baffle and fall into the interior compartment. The main door, locked by the ESL10 electronic combination, is the only way to retrieve those deposits. The bolt detent locks the door automatically on close. In a typical small business workflow, this means register employees clear to the safe throughout the shift without ever opening the main door. The owner or manager opens it at end of day or the following morning. How depository safe workflow integrates with different business cash handling patterns.

Best User

The operation that gets the most from the DSF Series has a small staff where one or two people handle the register, a single manager or owner who accesses the safe, and daily cash volume that fits in the chosen model's interior. Small retail shops, single-location food service, service businesses with a front counter, and home-based businesses that receive cash payments all fit this profile. The narrow footprint of the 14-inch models is the specific feature that makes the DSF relevant: it fits where nothing else does. The DSF2516 serves a different profile where a wider but shallower unit fits the installation environment.

Failure Point

Two failure points come up most often in practice. First: deposit packaging that does not fit the 2-3/4" wide hopper. Measure your standard deposit envelope or bag before ordering. This applies to all four DSF models. If it does not fit through a 2-3/4" gap, the DSF Series creates more friction than it solves. Second: not anchoring. At 96 lbs, this safe can be moved. An unanchored safe installed in a retail back office and later removed in a break-in provides no protection after it leaves the building. Anchor it. The bolt holes are there for exactly this reason.

Real-World Performance

The auto bolt detent performs consistently in a small business environment where closing the safe quickly and accurately at the end of a transaction matters. There is no separate locking step: close the door and it's locked. The ESL10 keypad is straightforward to operate and to reprogram when staff changes. For a business owner managing a small team, not having to call a locksmith every time a code needs to change is a practical advantage that compounds over time.

One model, one configuration. Here is the DSF Series specification and installation guidance in full.

Model Selection

Which DSF Model Fits Your Installation Space and Deposit Volume

The DSF lineup has a counterintuitive capacity structure. The tallest model does not hold the most; the mid-height model does. Read the guidance for each model before assuming height equals volume. Measure your installation space and your standard deposit packaging before ordering. How to match a safe to your actual installation environment.

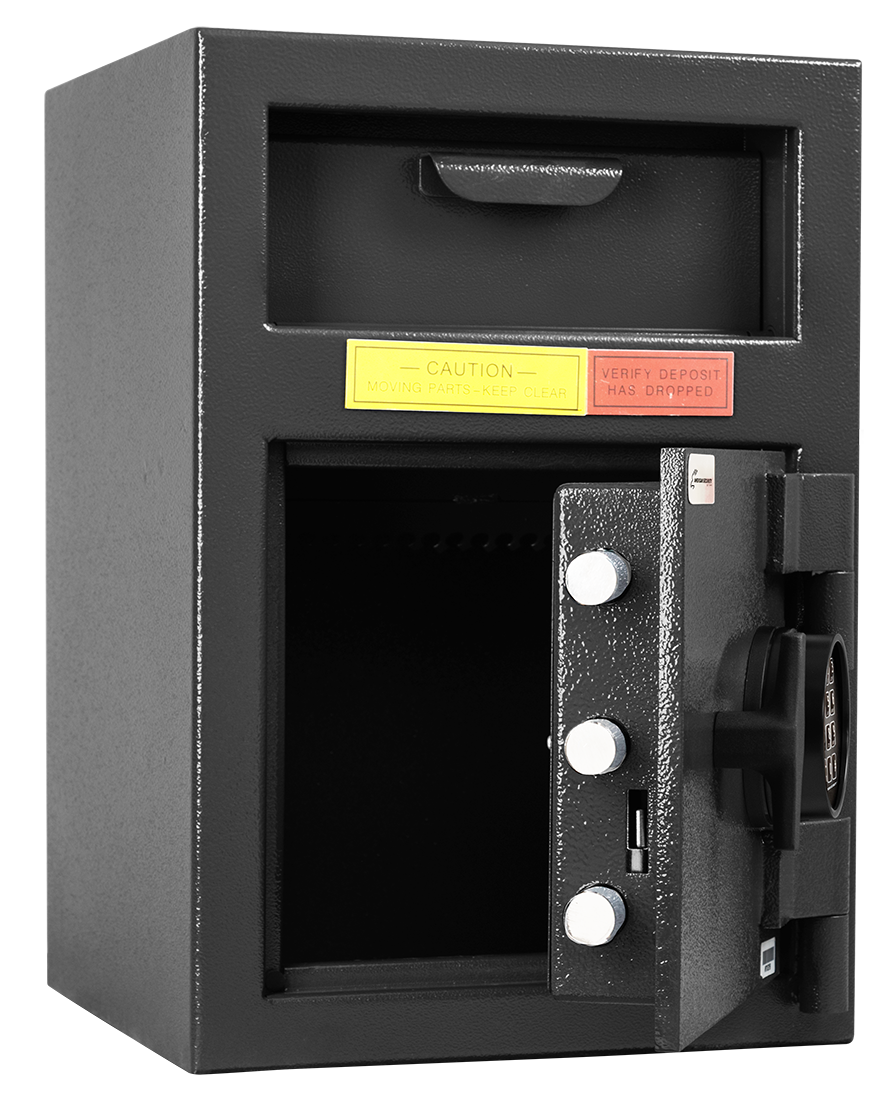

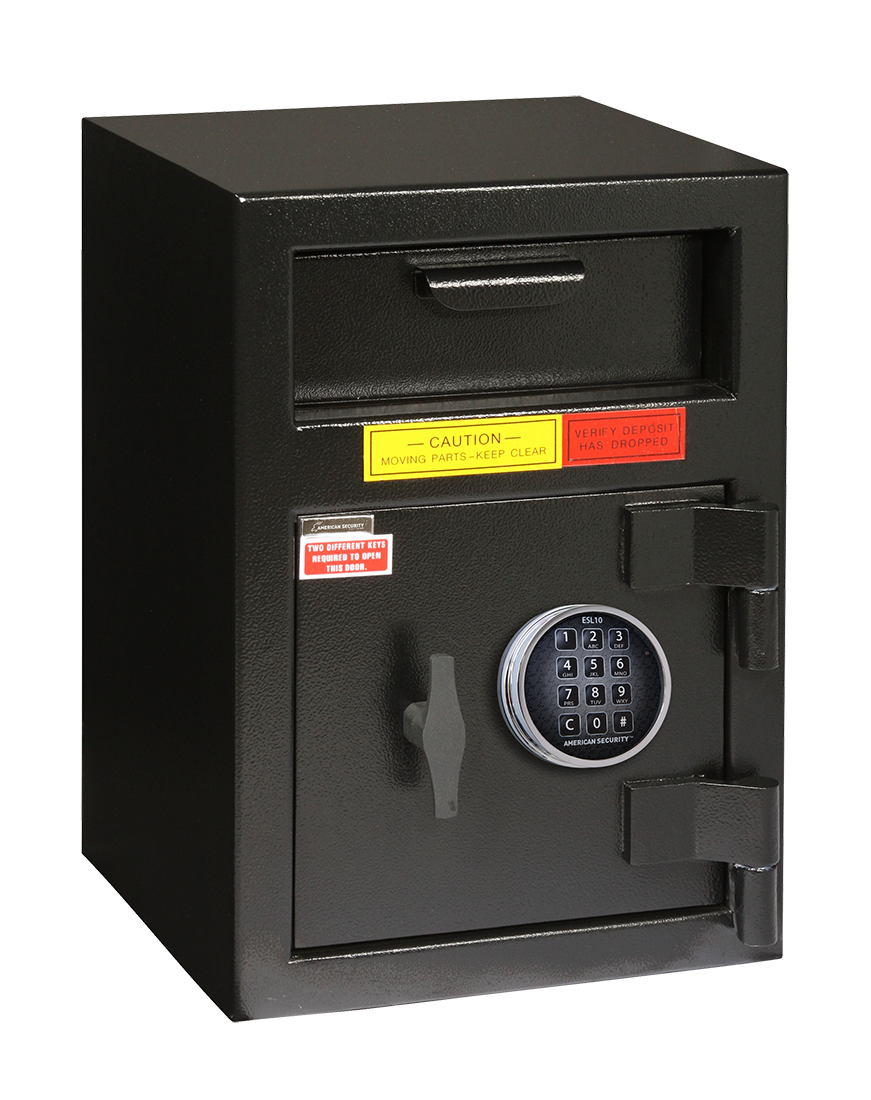

DSF2014: Smallest Footprint, Under-Counter or Shelf Mount

Exterior: 20-1/4" H × 14" W × 14" D • Door clearance: 9-3/4" H × 9-3/4" W • Weight: 84 lbs • Interior: 0.74 cu. ft. • Lock: ESL10 or ESL20 (your choice)

The lightest and most compact model in the lineup at 84 lbs and 20-1/4" tall. Fits under very low counters, on a shelf, or in a built-in cabinet where no other DSF model will. The ESL10 and ESL20 lock options give you more flexibility on access control configuration than the other models. At 0.74 cu. ft., interior capacity is the smallest in the series: this model suits a low-volume operation with infrequent retrieval. At 84 lbs unanchored, this is the model where the anchoring step matters most. Confirm your anchor substrate before delivery.

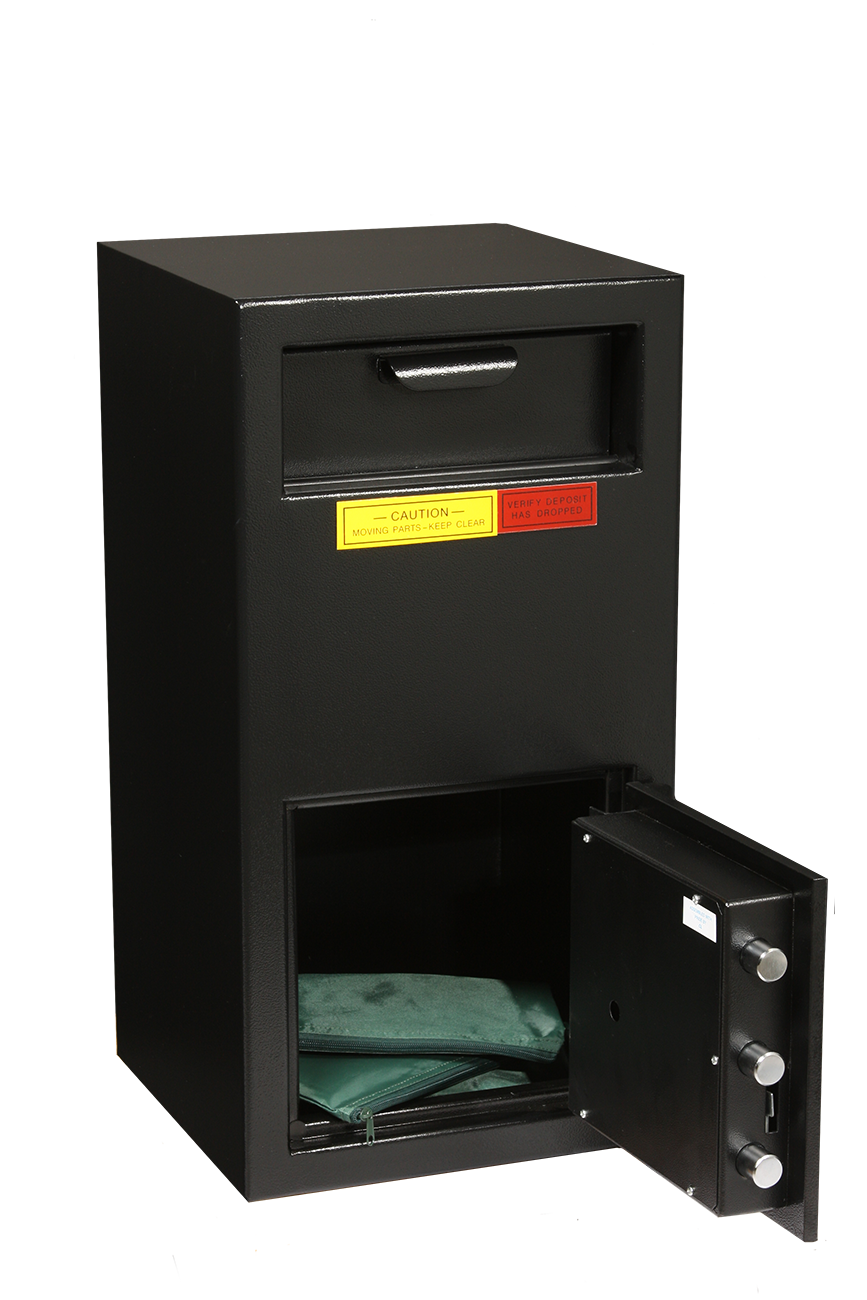

DSF2714: Best Capacity-to-Footprint in the Lineup

Exterior: 27-1/4" H × 14" W × 14" D • Door clearance: 9-3/4" H × 9-3/4" W • Weight: 96 lbs • Interior: 1.5 cu. ft. • Lock: UL Listed ESL10 electronic

The DSF2714 holds more interior volume than any other model in the lineup at 1.5 cu. ft., despite being neither the tallest nor the widest. If your installation space accepts a 27-1/4" height and 14" footprint, the DSF2714 gives you the best deposit capacity available in the DSF Series. This is the default recommendation for most small business installations where the footprint fits. At 27-1/4" tall it positions the hopper at a comfortable standing drop height. For most operations weighing models within the DSF lineup, this is the right answer unless a dimension constraint forces a different choice.

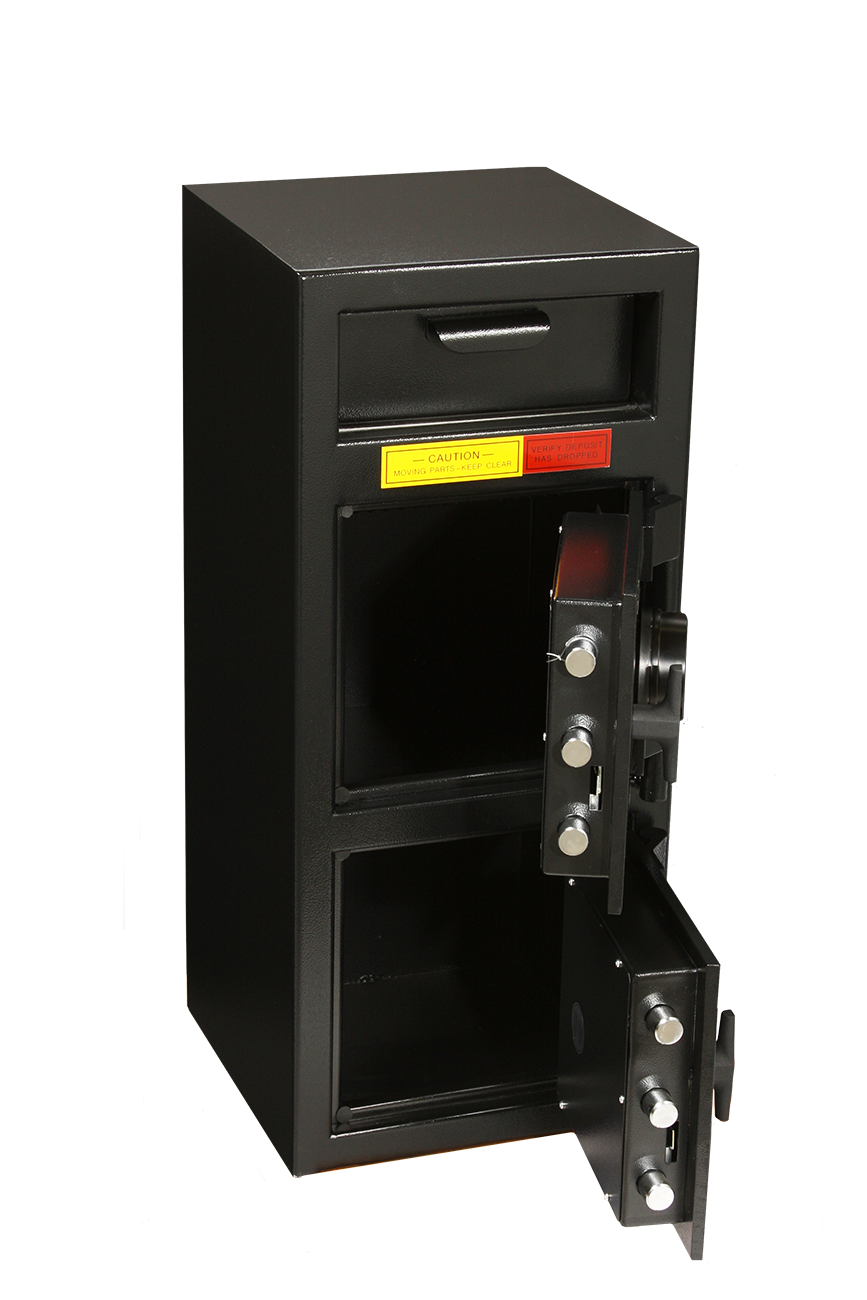

DSF3214: Taller Height, Smaller Interior Than the DSF2714

Exterior: 32-1/4" H × 14" W × 14" D • Door clearance: 9-3/4" H × 9-3/4" W • Weight: 138 lbs • Interior: 0.98 cu. ft. • Lock: UL Listed ESL10 electronic

The DSF3214 is taller than the DSF2714 but holds less: 0.98 cu. ft. versus 1.5 cu. ft. This is a counterintuitive spec that trips up buyers comparing by height alone. The DSF3214 is the right choice when your installation needs the hopper at a higher drop height than the DSF2714 provides, and when that height is more important than maximizing interior volume. At 138 lbs it is the heaviest of the 14-inch-wide models. If height is not the deciding factor, the DSF2714 is almost always the better capacity choice within the same footprint.

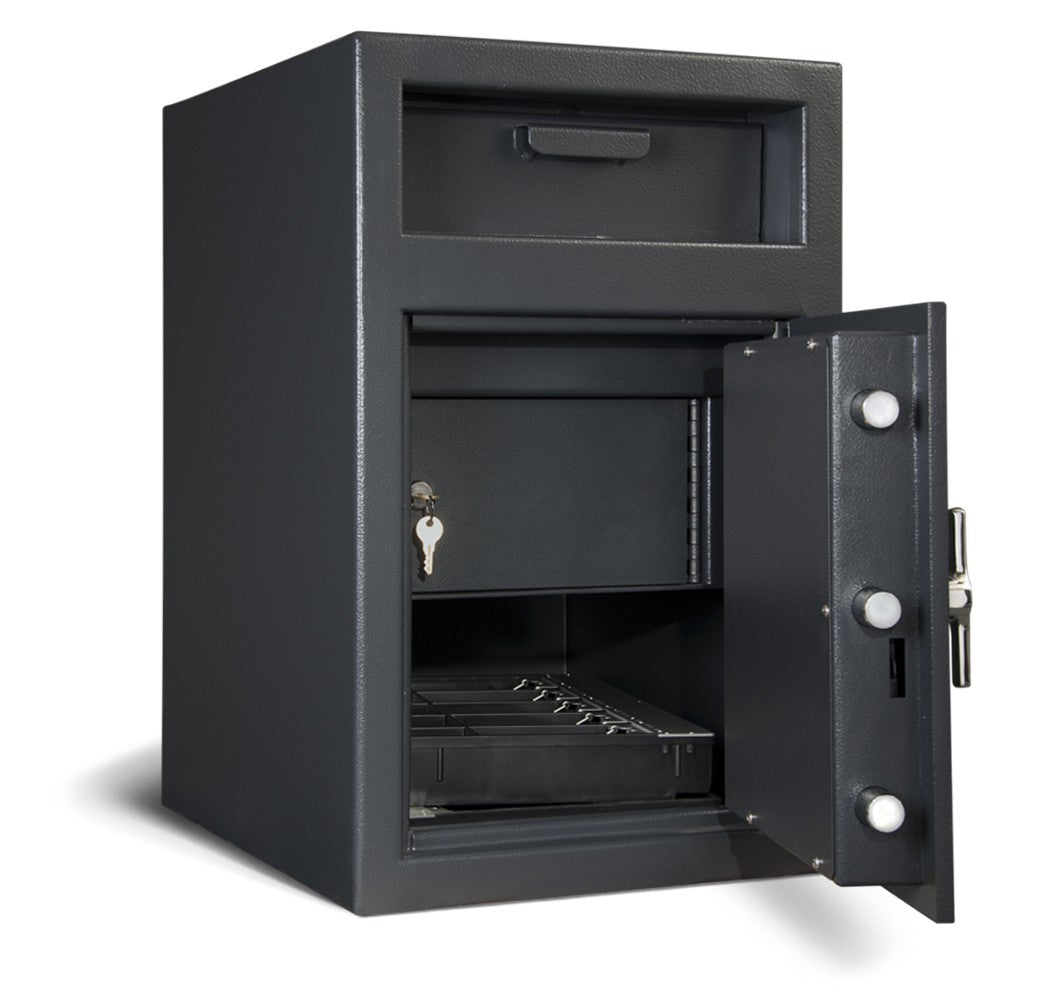

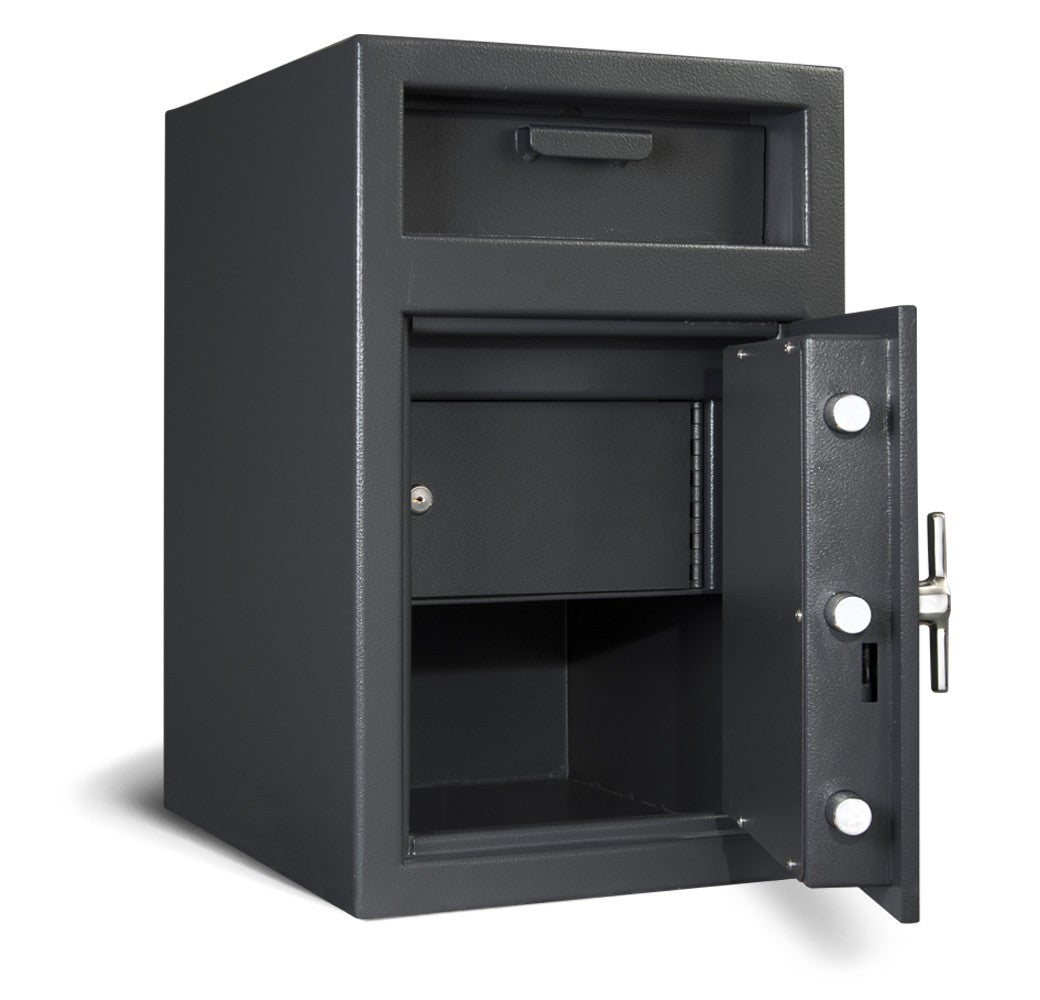

DSF2516: Wider, Deeper Profile for Different Installation Environments

Note: The DSF2516 is physically different from the other three models in every dimension. It is 16" wide and 20" deep versus 14" wide and 14" deep for the DSF2014, DSF2714, and DSF3214. It also uses an ESL20 lock (not ESL10) and weighs 155 lbs. Confirm your installation dimensions match this footprint before ordering.

Exterior: 25" H × 16" W × 20" D • Door clearance: 14-1/2" H × 12" W • Weight: 155 lbs • Interior: 0.88 cu. ft. • Lock: ESL20 electronic (standard)

The DSF2516 has a wider and deeper footprint than the other DSF models but holds less interior volume than the DSF2714. Its 16" wide by 20" deep profile serves installation environments where width and depth clearance is available but height is more restricted, or where the specific dimensional fit of this model suits a counter or cabinet configuration the 14-inch models do not. At 155 lbs it is the heaviest model in the series. The ESL20 lock standard on this model differs from the ESL10 on the others: confirm which lock configuration suits your access control needs before ordering. If your installation can accommodate any model in the lineup, the DSF2714 provides more interior volume for less weight at a narrower footprint.

All DSF models share the same B-rate construction: 11-gauge formed high-strength steel body, 1/2-inch solid steel plate door (recessed), formed door jamb (sledgehammer-resistant), 3-bolt 3-way auto-locking, hardened steel hardplate, spring-loaded relocking device, front-load hopper with dual anti-fish saw-tooth baffle (max package 10-1/2" H × 2-3/4" W × 4" D), and 4 anchor bolt holes. No fire rating on any model. UL listing applies to the electronic lock only, not the safe body.

See It Before You Decide

What Changes When You See the DSF Series in Person

The hopper opening is the deciding factor for most buyers

The 2-3/4" hopper width is the specification that resolves the DSF versus BWB question faster than anything else. Most business owners who come in unsure bring a sample of their standard deposit packaging. Holding it up to the hopper opening answers the question immediately. If it fits, the DSF works. If it doesn't, the BWB is the correct safe. That test takes 10 seconds in the showroom and prevents a return or a replacement purchase.

Size comparison against the BWB Drop Series

The DSF Series and the BWB Drop Series sit next to each other in our Caldwell showroom. The footprint difference is immediate: 14" wide versus 20" wide. For some installations, that 6 inches is the whole decision. For others, the installation space can accommodate either, and the decision shifts to capacity and certification. Seeing both in person makes that assessment concrete in a way that specs on a page don't.

Bring your insurance policy or cash sublimit endorsement

The single most valuable thing you can bring to the showroom is the relevant page from your commercial property policy. The cash sublimit endorsement tells us exactly what rating your insurer requires. If it requires a body-rated UL safe, we'll tell you the DSF doesn't qualify and show you the BWB Drop instead. If it doesn't specify a body rating, the DSF is a valid and cost-effective choice. That conversation takes five minutes and costs nothing.

The ESL10 lock is worth testing before you own it

The ESL10 electronic keypad is straightforward, but how it feels under daily commercial use (entering a code with one hand while managing a transaction with the other, in low light behind a counter) is worth experiencing before installation. Code reprogramming is also worth walking through once in the showroom. Our team can demonstrate both. A lock you understand before installation is one that doesn't create a service call in the first week.

"The business owners who call me after they've already bought the wrong safe almost always say the same thing: they didn't realize the hopper was that narrow, or they didn't know their insurance required something higher. Both of those are five-minute conversations. We'd rather have them before the purchase."

Jason, Idaho Safe & Vault, 23 years

What to expect when you visit our Caldwell showroom • Talk through your situation before you visit

Specifications

AMSEC DSF Series: Full Specifications

Security level: 2 of 10 • Insurance construction: B-rate (body not UL certified for burglary) • Fire rating: None

Construction

Body steel	11-gauge formed high-strength solid steel plate
Door construction	1/2-inch thick solid steel plate door, recessed for pry resistance
Jamb construction	Formed door jamb, engineered for increased resistance to sledgehammer attack
Hopper body	Recessed heavy-duty 1/8-inch construction with 1/4-inch hopper door
Drill protection	Large hardened steel hardplate protecting lock and relockers
Relocking device	Auxiliary spring-loaded relocking device
Insurance/certification	B-rate construction. Body is not UL certified for burglary. UL listing applies to the ESL10 lock.
Fire rating	None
Country of origin	Made in the USA

Locking System

Lock	UL Listed ESL10 electronic keypad. How electronic lock configurations compare in daily commercial use.
Locking mechanism	3-way with automatic bolt detent engagement on door close
Total locking bolts	3 bolts, 1-inch diameter, chrome-plated steel
Other lock options	Additional lock configurations available upon request; ask us

Depository System

Deposit method	Front-load hopper
Baffle type	Dual anti-fish saw-tooth baffle
Max deposit package	10-1/2" H × 2-3/4" W × 4" D
Anchor holes	4 anchor bolt holes (standard)

Measure your deposit packaging against the 2-3/4" hopper width before ordering. Standard flat envelopes fit; wider zip deposit bags may not.

Model Dimensions and Weight

DSF2014
Exterior (H×W×D)	20-1/4" × 14" × 14"
Door clearance (H×W)	9-3/4" × 9-3/4"
Weight	84 lbs
Interior capacity	0.74 cu. ft.
Lock	ESL10 or ESL20 (specify at order)
DSF2714
Exterior (H×W×D)	27-1/4" × 14" × 14"
Door clearance (H×W)	9-3/4" × 9-3/4"
Weight	96 lbs
Interior capacity	1.5 cu. ft.
Lock	UL Listed ESL10 electronic
DSF3214
Exterior (H×W×D)	32-1/4" × 14" × 14"
Door clearance (H×W)	9-3/4" × 9-3/4"
Weight	138 lbs
Interior capacity	0.98 cu. ft.
Lock	UL Listed ESL10 electronic
DSF2516: different footprint 16" wide × 20" deep
Exterior (H×W×D)	25" × 16" × 20"
Door clearance (H×W)	14-1/2" × 12"
Weight	155 lbs
Interior capacity	0.88 cu. ft.
Lock	ESL20 electronic (standard)

Finish: textured charcoal gray, all models. The DSF2516 has a different exterior footprint (16" W × 20" D) and uses an ESL20 lock. All other models are 14" W × 14" D with ESL10. At 84 to 155 lbs, anchoring through the four pre-drilled bolt holes is strongly recommended on all models. An unanchored safe at this weight class can be removed with standard moving equipment.

Questions about whether this model fits your space or situation?

We stock both the DSF Series and the BWB Drop Series and can walk you through the comparison. Bring your deposit packaging dimensions and your insurance policy language.

Talk to Our Team

Placement and Installation

Where You Put the DSF Series Matters as Much as Buying It

An unanchored 96-pound safe is a portable container. An anchored 96-pound safe is a fixture. The difference between those two things is four anchor bolts and the right substrate underneath them.

The DSF's four pre-drilled anchor holes are standard equipment for a reason. At 96 lbs, this safe can be lifted and carried by two people or moved with a hand truck without special equipment. Anchoring to concrete or structural floor converts it from something that can be removed in under two minutes to something that requires cutting equipment and significant time, which is a different calculation for a break-in scenario. What anchoring decisions do for a safe's protection beyond its construction rating.

Under-counter installation: The most common position for the DSF in a retail or food service setting. At 14" wide, it fits standard cabinet openings. Confirm the counter or cabinet can support the weight and that the hopper is accessible from a natural working height for employees making drops. An awkward drop position leads to employees skipping the safe during busy periods.
Anchor substrate: Concrete slab is the preferred anchor substrate. In newer Canyon County commercial construction, check for post-tension cables before drilling; we assess this on every commercial slab installation as standard practice. Wood substrate anchoring requires lag bolts into structural framing, not just the cabinet floor.
Customer visibility: Keep the safe out of customer sightlines where possible. A visible safe is a target for planned theft. Cabinet installation, back-of-counter positioning, or inside a back office are all more secure than an open counter position visible from the sales floor.
Door swing clearance: The main door swings open to the front. Account for the full door swing plus clearance to the nearest wall or obstacle. In a tight under-counter installation, confirm the door can open far enough to access the interior for daily retrieval without the cabinet obstructing it.
Delivery access: At 96 lbs, two people with proper equipment can manage delivery to most commercial positions. If the final installation spot has stairs, a tight hallway, or an unusual access path, call us before scheduling. Installation situations worth discussing before delivery day.

Delivery is next: what our commercial installation looks like for a safe at this weight class.

Delivery & Installation

How We Deliver and Install the AMSEC DSF Series

At 84 to 155 lbs across four models, DSF Series safes are manageable, but "manageable" and "correctly installed" are different things. Standard freight delivers to your address. Our in-house delivery service places it at the final installation position, assesses the anchor substrate, and completes the anchor installation if requested. Our complete commercial delivery and installation process.

What delivery day looks like: Jason or Merlin arrives with the right equipment for the weight class, confirms the installation position before unboxing, and places the safe correctly, including under-counter positioning if that is the intended location. The anchor installation, if requested, follows placement and includes substrate assessment before any drilling. For commercial accounts, we schedule around your business hours. What to expect when our delivery team arrives for a commercial installation.

Idaho Safe & Vault Delivery Insight:

"The commercial installs that go sideways are almost always under-counter placements where nobody measured the cabinet opening beforehand, or anchor jobs where the customer assumed the substrate was concrete and it wasn't. Both are five-minute conversations before delivery that prevent a two-hour problem on the day."

Merlin, Idaho Safe & Vault, 16 years

Thinking About Handling Delivery and Installation Yourself?

At 96 lbs, DIY delivery and placement is practical with two people and a standard hand truck. What goes wrong most often: measuring the cabinet opening after the safe arrives rather than before, anchoring into a cabinet base rather than the structural floor beneath it, or placing the safe in a position where the door swing is obstructed. The anchor step is the one most often skipped, and it's the one that matters most at this weight. If you are doing this yourself, confirm the anchor substrate, use hardware rated for the weight, and bolt into structural material, not just the finished surface. When DIY commercial safe installation works and the steps where it most often fails.

Short version for business owners ready to decide: here is the decision frame.

Decision Summary

How to Know If the AMSEC DSF Series Is the Right Call for Your Business

If you have read through the full profile, here is the short version.

Buy the DSF Series if:

Your installation space is the constraint: the 14-inch-wide models (DSF2014, DSF2714, DSF3214) fit where the 20-inch BWB Drop Series will not. The DSF2516 at 16 inches wide serves a different footprint. Confirm which model's dimensions match your opening.
Your insurance does not specify a body-level UL burglary rating for your cash coverage, or your cash on-premises falls below the threshold that triggers a rated-safe requirement.
Your deposit packaging fits the 2-3/4" wide hopper. Measure before ordering.
You plan to anchor it. Commit to that step before you buy.

Step back if:

A lockbox or basic cash drawer is genuinely sufficient for your volume and risk profile. Not every small business needs a steel safe. If daily cash volume is minimal and the overnight exposure is low, a simpler solution may be appropriate.
Your deposit packaging is wider than 2-3/4". A hopper that does not accept your deposits is not a depository safe in practice. Measure before ordering.

Step up if:

Your insurance policy specifies UL B-Rate body certification. The BWB Drop Series carries that. The DSF does not.
Your daily volume fills 1.5 cu. ft. too quickly, or you need a separately locked deposit compartment to segregate shift drops.
Your deposit packaging exceeds 2-3/4" wide. The BWB accepts packages up to 11-1/2" wide.

How to make this decision confidently if you're still weighing options.

Final guidance: Check three things before you order. First, confirm your deposit packaging fits the 2-3/4" hopper opening. Second, verify with your insurance broker whether your policy requires a body-rated UL safe or whether B-rate construction suffices. Third, confirm the installation position dimensions match the specific DSF model you are ordering, and that the anchor substrate is suitable. If all three align, the DSF is the right product. If any one of them does not, call us before ordering.

Common Questions

AMSEC DSF Series: Frequently Asked Questions

Does the DSF Series satisfy my business insurance requirement for a rated safe?

The DSF Series is built to B-rate construction standards and carries a UL Listed lock. The UL listing applies to the ESL10 electronic lock mechanism, not the safe body. The body is not independently UL certified for burglary resistance. Whether this satisfies your insurance policy depends on the specific language in your cash sublimit endorsement. If your policy says "UL Listed electronic lock," the DSF qualifies. If it specifies "UL B-Rated safe body" or "UL-rated burglary safe," it does not. Pull your cash sublimit endorsement and confirm with your broker before purchasing. We can provide the DSF's product documentation when you order to support any insurer review. How to read your insurance policy's safe requirement language.

What is the maximum deposit package size the hopper accepts?

The DSF hopper accepts packages up to 10-1/2" H × 2-3/4" W × 4" D. The 2-3/4" width is the most common constraint. Standard flat bank envelopes typically fit. Wider zipper-close deposit bags, thick currency straps bundled together, and most retail cash till inserts will not fit through a 2-3/4" opening. Measure your standard deposit packaging against this dimension before ordering. If your regular deposits exceed 2-3/4" wide, the AMSEC BWB Drop Series with its wider hopper opening is the correct product for your operation.

Why does anchoring matter so much at 96 lbs?

96 lbs is light enough to be moved by two people with a standard hand truck or appliance dolly, both of which are common in delivery and service vehicles. A retail or food service break-in that involves a vehicle typically has the equipment to remove a safe this size in under two minutes if it is not anchored. Anchored through the four pre-drilled bolt holes into a concrete slab or structural floor, removal requires cutting equipment and significant time, which is a materially different scenario. The anchor step is the single most important installation decision for a safe at this weight. We recommend anchoring on every commercial install and handle it for customers who want us to.

Does the DSF Series have a separate interior locker like the BWB Drop Series?

No. DSF Series models have a single interior compartment that receives deposits through the hopper. There is no separately keyed interior locker to segregate deposits from main storage, as the BWB Drop Series provides. Deposits dropped through the hopper accumulate in the main interior space and are accessible when the main door is opened with the ESL10 combination. If your operation requires shift-by-shift deposit segregation with separate access control for different tiers of staff, the BWB Drop Series with its interior locker is the right product for that workflow.

How does delivery and installation work for a commercial location?

Our in-house team handles delivery and placement for commercial accounts. At 96 lbs, this safe is manageable, and we place it at the final installation position, not at your building entrance. Before scheduling delivery, confirm your installation position: the cabinet opening dimensions if it is an under-counter placement, the anchor substrate (concrete slab or structural floor), and the access path from entry to placement location. Anything unusual, a narrow doorframe, stairs, or a non-standard substrate, is worth a quick call before we arrive. Call 208-454-8038 or reach us directly to plan the delivery.

What if I need a different lock configuration than the ESL10 keypad?

The DSF2714 and DSF3214 ship standard with the UL Listed ESL10 electronic keypad. The DSF2516 ships with the ESL20. The DSF2014 gives you a choice of ESL10 or ESL20 at order. Other lock configurations are available upon request. If your operation requires a mechanical combination lock, a time-delay electronic lock for robbery deterrence, or a higher-security electronic configuration, ask us before ordering. We are factory-authorized for AMSEC and can confirm available options and lead times for non-standard configurations. Call 208-454-8038 or contact us through the showroom.

Keep Going

Three Resources That Help You Make This Decision With Confidence

How to read your insurance policy's safe requirement before you buy the wrong product

The difference between a UL Listed lock and a UL-rated safe body is the most common source of insurance coverage gaps in commercial safe purchases. This guide explains how to find the relevant language in your policy, what different UL designations mean, and which safe you need to satisfy each one.

Read the Guide

What placement and anchoring decisions do for a compact commercial safe's actual protection

A safe's construction rating assumes it stays in one place. This guide explains why anchoring a lightweight commercial safe matters more than anchoring a heavier one, how to choose the right anchor substrate, and the placement decisions that make a back-office safe harder to find and harder to remove.

Read the Guide

How to compare the DSF and BWB Drop Series for your specific operation

The three questions that determine which commercial depository safe fits your business: what your insurance requires, what your deposit packaging measures, and how much interior capacity your daily volume needs. This guide walks through each one so you arrive at a decision before you spend money on the wrong product.

Read the Guide

Ready to Move Forward

Let's Find the Right DSF Model for Your Business

We are a factory-authorized AMSEC dealer with 32 years of commercial and residential safe experience across Western Idaho and Eastern Oregon. Three questions determine whether this is the right product for your operation: your deposit packaging width, your insurance policy language, and your installation space. We can work through all three in a short phone call.

Talk to a Safe Expert

Call 208-454-8038 • Mon–Fri 10am–6pm • Sat 10am–4pm

Not sure this is the right safe type for your situation?

Take the two-minute protection level quiz

What to expect when you visit our Caldwell showroom • The ways to reach us before you commit
