AMSEC BWB Depository | UL B-Rated

American Security BWB Series Commercial Safe

BWB2020: 29.75″H x 20″W x 20″D

$1,710.00

1/4

American Security BWB Series Commercial Safe

$1,710.00

ⓘ Product images are for reference only and may not exactly reflect the appearance of the actual safe.

Product Overview

A Front-Load Depository Safe Built for Daily Cash Operations, With the Construction to Back Up an Insurance Rating

The AMSEC BWB Drop Series is a wide-body front-load depository safe designed for businesses that handle cash every day. Employees drop cash, checks, and envelopes through the front hopper without ever opening the main door. An interior locker separates those deposits from the main storage compartment. The main door locks with five 1-inch diameter chromed steel bolts in a 3-way pattern, backed by a hardened steel hardplate, a spring-loaded relocking device, and reinforced internal jambs on all four sides rated against sledgehammer attack. The construction earns a mercantile UL B-Rate insurance rating, which is what most small business insurance carriers and commercial lease agreements will ask for when they require documented safe protection for cash on premises.

Idaho Safe & Vault carries the BWB Drop Series in three front-load sizes: the BWB2020FL (218 lbs, 1.74 cu. ft.), the BWB3020FL (278 lbs, 3.7 cu. ft.), and the BWB4020FL (360 lbs, 5.63 cu. ft.). All three are available for consultation at our Caldwell showroom.

Insurance rating: Mercantile UL B-Rate Security level Bolts: Five 1" diameter, 3-way engagement Lock: UL Type 1 ESL10 electronic (all FL models) Three sizes: 218 lbs / 278 lbs / 360 lbs Origin: Made in the USA

Full specifications · Common questions · Understand which protection factors matter most for your business

Why This Matters

The UL B-Rate is the insurance industry's threshold for mercantile cash coverage in most small business policies. A safe that doesn't carry it may satisfy a manager's comfort level but fail the documentation check when a claim is filed. The BWB Drop Series earns that rating through its construction: the 1/2-inch solid steel plate door, the reinforced jambs on all four sides, the hardplate, and the bolt system combined are what UL tested, not just the lock. What UL ratings actually certify and which ones your business insurance is likely to require is worth reading before you compare options.

Three lists below will tell you whether this safe fits your operation, where to step back, and when to look higher.

Who It Fits

Who the AMSEC BWB Drop Series Fits

Read these three lists and you will know whether the BWB Drop Series fits your operation, where to step back to a simpler solution, or where your cash volume and risk profile require something higher.

This Is Right For You If

Your business handles cash daily and you need employees to drop deposits without access to the main safe. The front-load hopper with anti-fish baffle lets staff drop cash, checks, and envelopes throughout the shift. The main door stays closed.
Your insurance policy, commercial lease, or franchisor agreement requires a UL B-Rated mercantile safe for cash on premises. The BWB Drop Series carries that rating through its construction, not just its lock.
You need the interior divided: deposits in the locker, main cash storage in the body. The interior locker (1/4-inch steel door, single-key camlock) keeps the shift's drops separate from the cash tray and till storage until management access.
Your operation is retail, food service, gas station, or any environment where the register needs to be cleared to a safe multiple times per shift without slowing workflow.
You need three size options: the BWB2020FL under a standard counter at 29-3/4" tall, the BWB3020FL at full standing height with more than double the interior capacity, or the BWB4020FL at 49-3/4" for high-volume operations that need the most interior space available in this lineup. Defining what your operation needs before selecting a configuration.
You want a UL Type 1 ESL10 electronic lock, which carries the highest UL lock certification available for commercial electronic locks, with programmable user codes for shift management.

Not The Right Fit If

You need fire protection. The BWB Drop Series has no fire rating. If your business location or lease requires a fire-rated safe, this product doesn't meet that requirement. Look at the AMSEC BF or BFS Series for combined fire and burglary protection.
You need through-the-wall rear deposits: employees dropping from a customer-facing side into a back-office safe. That workflow requires the AMSEC DSR Series, which is built for exactly that configuration.
Your primary need is firearms storage, document protection, or a general-purpose home safe. This is a commercial cash management safe. Its design assumes a business workflow, and its construction is optimized for that use case. Matching the safe type to the actual use case before committing to a model.
Your insurance carrier or commercial account requires TL-rated protection (TL-15, TL-30). The BWB Drop Series is B-rated, which covers most small business mercantile requirements but does not meet TL-rated standards for high-value commercial vaults.

Consider Stepping Up If

Your nightly cash on premises regularly exceeds the coverage limits your insurer assigns to B-rated safes. Many commercial policies place a cash sub-limit that depends on the safe's rating. Confirm your limit with your carrier before choosing a model.
Your operation handles multiple currency drops from separate shifts or departments that need to stay segregated until armored pickup. The MM Series (Money Manager) with dual compartments and color-coded drop chutes was built for that workflow.
You operate in a high-crime area or have experienced a prior burglary, and want construction rated above UL B. The AMSEC ACF Series with TL-30 certification addresses that level of risk, though the cost and weight increase significantly.

Where to go: Talk to us about which AMSEC commercial safe fits your specific cash volume, workflow, and insurance requirement before ordering. Call 208-454-8038 or reach us directly and we'll work through the right configuration for your operation.

Does this fit your operation?

If you're deciding between model sizes, comparing this to another AMSEC commercial safe, or need to confirm the right configuration for your insurance requirement, we can walk through it. Commercial safe selection goes faster over a phone call than a product page.

See How to Choose the Right Safe Visit the Showroom

The Value Case

What B-Rated Commercial Construction Actually Means Beyond the Lock

Most businesses buying a depository safe focus on two things: whether it has a drop slot and whether it locks. The BWB Drop Series has both. What separates B-rated construction from a basic depository safe is what happens to the construction when someone decides to attack the safe rather than the slot.

What most buyers assume: "A depository safe is a depository safe. The slot and the lock are what matter."

What B-rated construction adds: The BWB's 1/2-inch solid steel plate door is recessed into the frame, which eliminates the pry gap a flush door leaves. The body is formed from 11-gauge high-strength steel with reinforced internal jambs on all four sides, tested specifically against sledgehammer attack. The 3-way locking mechanism engages five 1-inch diameter chromed steel bolts with automatic bolt detent that locks the door the moment it closes, without requiring a separate lock action. A large hardened steel hardplate shields the lock mechanism and relockers from drill attack. An auxiliary spring-loaded relocking device triggers independently if the lock is punched out. Together, these features are what UL evaluated to assign the mercantile B-Rate, not just the lock in isolation. What commercial burglary protection ratings test for and how they compare.

Security construction: 1/2-inch solid steel plate door (recessed). 11-gauge high-strength steel body. Reinforced internal jambs all four sides. Five 1" diameter chromed steel bolts in 3-way pattern with auto bolt detent. Large hardened steel hardplate over lock and relockers. Auxiliary spring-loaded relocking device. UL Type 1 ESL10 electronic lock.

Depository workflow: Front-load hopper with anti-fish saw-toothed baffle. Maximum package size: 4" H × 11-1/2" W × 9" D. Interior locker (1/4" steel door, single-key camlock, 2 keys included) keeps deposits separate from main compartment. Bolt detent auto-locks door on closing so employees never handle the combination. Door-mounted coin rack for rolled change. How interior configuration affects daily cash handling workflow.

Insurance documentation: The mercantile UL B-Rate is the benchmark most small business property insurance policies use to determine cash coverage sublimits on premises. Buying a safe that carries this rating and keeping the documentation on file is the difference between a compliant claim and a disputed one. The BWB carries the rating; we can provide the documentation your carrier may request.

Idaho Safe & Vault Perspective: Commercial safe buyers come to us from two directions: the business that already had an incident and needs to replace what failed, and the business setting up for the first time and figuring out what their insurance actually requires. In both cases, the UL B-Rate question comes up early. The BWB Drop Series answers it with construction, not just a sticker. In 32 years of commercial and residential safe work, we've seen enough insurance disputes after a loss to know the documentation conversation is worth having before you order, not after. Why buying from a factory-authorized dealer changes the post-purchase support equation.

With the construction case clear, here is what this safe's protection profile actually delivers for a business and where it honestly stops.

Common Mistakes

What Business Owners Get Wrong When Buying a Depository Safe

Four misconceptions show up consistently when business owners are evaluating depository safes. Each one leads to a buying decision that either misses the insurance requirement, fails in a real incident, or creates operational problems that weren't anticipated.

Misconception:

"My insurance just says I need a safe. Any safe will satisfy the requirement."

Reality:

Most commercial property policies that cover cash on premises specify a minimum safe rating, usually UL B-rated or equivalent, as a condition of the cash sublimit. A safe that doesn't meet the specified rating may leave your cash coverage voided in a claim even if you had a safe on premises. Read your policy's cash sublimit endorsement before you buy. If the rating requirement isn't clear in the policy language, call your broker and ask specifically what rating is required for your cash coverage limit. We can provide the safe's UL documentation when you order.

Misconception:

"The anti-fish baffle means nobody can get cash out of the drop slot. The slot is secure."

Reality:

The anti-fish saw-toothed baffle prevents retrieval of deposited items through the slot. It does not prevent someone from watching the drop process, timing the deposit pattern, or targeting the slot area for a physical attack. The baffle is one component of a layered system: the deposit slot handles the workflow, and the B-rated body construction handles the threat to the safe itself. Both are necessary. The slot alone doesn't protect the cash; the full construction does. How commercial depository safes are designed to resist real attack scenarios.

Misconception:

"The interior locker and the main compartment are basically the same space. The locker is just a divider."

Reality:

The interior locker is a separately secured compartment with its own 1/4-inch steel door and independent camlock keyed to a separate key from the main door. A shift employee who drops cash through the hopper has no access to previously deposited cash in the locker, and no access to the main compartment. A manager who opens the main door to retrieve the till does not automatically access the locker. This separation is an operational security feature, not cosmetic. It's what makes continuous drop operation across multiple shifts work without exposing all the day's cash to every access event.

Misconception:

"The auto bolt detent means the safe locks itself automatically. Employees don't need to do anything after a drop."

Reality:

The bolt detent system engages the boltwork automatically when the door closes, which is a genuine security advantage over safes that require a separate locking action. This means a closed door is a locked door. It does not mean an open door is secured. If the main door is left ajar after a manager access event, the detent does nothing until the door is fully closed. Train your team to confirm door closure after every main-door access event. The detent handles the locking; closing the door is still a human step.

With those assumptions addressed, here is what the BWB Drop Series protection profile delivers for a business and where its limits are.

Protection Profile

What UL B-Rated Depository Protection Delivers for a Business

UL B-Rate is a construction-based certification. It evaluates the safe's body thickness, door construction, and locking mechanism as a system. The BWB Drop Series earns this rating through its 11-gauge high-strength steel body, 1/2-inch plate door, reinforced four-side jambs, five-bolt 3-way locking pattern, hardplate, and relocking device working together. For most small businesses, this is the rating that satisfies an insurer's cash sublimit requirement and provides documented protection for a robbery or overnight break-in scenario.

This tier does not include fire protection. If fire risk is part of your business protection plan, a separate fire-rated safe or combined fire-burglary product is required alongside the BWB.

Burglary Resistance

UL B-Rate · 1/2" plate door · 5-bolt 3-way engagement · reinforced four-side jambs

B-rated construction is designed to resist forced entry using common tools: pry bars, hammers, drills, and punches. The recessed door eliminates the leverage point a flush door provides for prying. The four-side jamb reinforcement addresses sledgehammer attack at the frame, not just the bolt side. The hardplate and spring-loaded relocker address the drill-and-punch attack sequence. This construction profile covers the attack scenarios most common in retail and food-service robbery situations. How B-rated construction compares to RSC and TL-rated standards for commercial applications.

Operational Security: The Deposit System

Front-load hopper · anti-fish baffle · interior locker with independent camlock · auto bolt detent

The front-load design means the main door never needs to open during a shift for employees to secure cash. The hopper accepts packages up to 4" H × 11-1/2" W × 9" D. The anti-fish baffle prevents retrieval from the slot. The interior locker keeps each shift's drops secured independently until management access. The auto bolt detent means a closed door is a locked door: no separate locking step, no employee error in the closing sequence. For businesses where cash handling involves multiple employees across multiple shifts, this workflow removes most of the human-error vectors in cash security.

This matters most if:

Retail, food service, gas station, or any business with daily cash drops and multiple employees handling cash

The BWB Drop Series was designed for the business that clears the register to a safe throughout the day, stores the day's receipts overnight, and needs the process to work without giving employees access to the full safe. If your cash handling involves one person at end of day, a simpler safe may serve the same purpose at lower cost. If it involves multiple shifts and multiple people, the BWB's deposit-without-access-to-main-compartment design has real operational value beyond the protection rating.

This becomes limiting when:

High-value cash overnight, TL-rating requirement, or fire protection needed

B-rated construction is not designed to resist a sustained, tool-heavy attack over an extended period. A business location that is unoccupied overnight in a high-crime area, or that carries cash balances above the B-rate sublimit defined by your insurer, should evaluate whether the next tier of protection (RSC or TL-15) is required. And B-rate does not address fire at all: if your location needs documented fire protection, that requires a separate product or a combined fire-burglary safe alongside this one. How to evaluate which commercial safe tier matches your actual risk and coverage requirement.

Here is where the BWB Drop Series sits on the full protection scale.

Protection Scale

Where the AMSEC BWB Drop Series Sits on the Protection Scale

The BWB Drop Series sits at the Balanced Protection tier, where construction earns a formal insurance rating rather than relying on a marketing claim. Below it are depository safes without UL construction certification. Above it are TL-rated commercial safes for businesses whose cash volume or insurance requirement exceeds what B-rated construction covers.

Maximum Protection TL-30 certified. Commercial tool-resistant vault construction. AMSEC ACF Series.

Enhanced Protection TL-15 certified or higher RSC construction. Higher cash sublimits and commercial account requirements.

Balanced Protection BWB Drop Series – You are here UL B-Rate mercantile · 11-gauge body · 1/2" plate door · 5-bolt 3-way engagement · front-load hopper · interior locker · three FL sizes: BWB2020FL, BWB3020FL, BWB4020FL

Essential Protection Basic depository safes without formal UL construction rating.

Cabinet (Pre-Tier)

How all four protection tiers compare in construction and certification

Idaho Safe & Vault's 32 years and 3,500-plus installations across Western Idaho and Eastern Oregon, and why factory-authorized commercial safe service matters after the purchase.

Idaho Safe & Vault

Why Buy the AMSEC BWB Drop Series From Idaho Safe & Vault

Commercial safe purchases carry a different set of post-purchase needs than residential ones. The safe needs to be installed correctly, anchored if required, and the lock needs to be serviceable when codes change or an employee turns over. A factory-authorized AMSEC dealer with in-house lock service capability is a different relationship than buying from a general merchandiser who sources from a distributor. Idaho Safe & Vault has been factory-authorized for AMSEC for years, and we handle commercial safe consultations differently than residential ones: the first questions are about your cash workflow, your insurance requirement, and your installation environment, not which model looks good. What a factory-authorized dealer relationship actually provides after the sale.

Factory-authorized AMSEC dealer: accurate specifications, direct manufacturer access, and warranty support that doesn't route through a third-party chain.
In-house lock service and combination/code change capability. Employee turnover means the ESL10 user codes need to be updated. We handle that in Caldwell without a service call fee structure that penalizes routine maintenance.
Commercial installation experience: anchoring, under-counter positioning, and access path assessment are part of every delivery. At 218 to 278 lbs, BWB Drop Series safes require proper equipment and placement planning, not just freight drop.
Caldwell showroom with the BWB Drop Series on display alongside the full AMSEC commercial lineup, for side-by-side comparison of the BWB against the MM Series and other commercial configurations before you commit.
Combined commercial and residential expertise: if your business location also has a residential component, or if you're a property manager or multi-site operator, we can address both safe categories in a single conversation.

Western Idaho and Eastern Oregon commercial context: Small business cash operations in our service area cover a wide range: retail in the Treasure Valley, food service across the Canyon County corridor, gas stations and convenience stores along I-84, and seasonal operations in the mountain communities. The cash volume, overnight exposure, and insurance requirements vary significantly across these environments. We've had enough commercial safe conversations over 32 years to ask the right questions before recommending a configuration. What our commercial delivery and installation service includes.

The interior system is next: how the BWB's two-compartment layout works across the two IS&V-stocked models and what each holds in a real business workflow.

Real-World Use

How the BWB Drop Series Works in a Real Cash Operation

How the Two-Compartment System Works

The main door opens to the full interior compartment for management access: pulling the till, counting receipts, preparing the bank deposit. That door requires the ESL10 combination. The interior locker sits inside the main compartment with its own 1/4-inch steel door and camlock keyed separately. Cash dropped through the front hopper lands in the locker and stays there until the locker is opened with its key. The door-mounted coin rack holds rolled change for register operations. For a business with multiple shifts, the workflow is: shift employee drops to hopper, manager accesses main door for till management, manager or owner opens locker to collect shift drops. No step in that sequence requires any employee to have access to the step above their role. How safe interior configuration maps to business cash handling workflows.

Best User

The business that gets the most from the BWB Drop Series has three tiers of cash access in its operation: employees who drop but don't retrieve, a shift manager who accesses the main door for till management, and an owner or manager who opens the locker to collect drops. Retail operations, food service, convenience stores, and gas stations with regular cash volume throughout the day map naturally to this workflow. Single-operator businesses with one person handling all cash access can use it effectively, but they won't gain as much from the multi-tier access separation.

Failure Point

The most common operational problem we see with depository safes in commercial settings is undersizing: buying the smaller model because it fits under the counter and running out of interior capacity within a few months as the business grows. The BWB2020FL at 1.74 cu. ft. is the right choice only when counter height is genuinely the constraint. If the installation position allows the BWB3020FL at 39-3/4" tall, or the BWB4020FL at 49-3/4" tall, the larger model is almost always the better long-term decision. A second problem: not planning for the locker key. The interior locker ships with two keys. Establish immediately who holds those keys and where the backup lives.

Real-World Performance

The auto bolt detent is the feature that consistently performs best in multi-employee environments: the door locks on close without requiring any separate locking action, which removes the human error of a partially locked door at the end of a busy shift. The front hopper is sized for standard cash bags and envelopes. The locker dimensions (approximately 5-5/16" H × 19-3/4" W × 13-1/2" D) hold a meaningful volume of deposits before requiring management retrieval. The coin rack on the door handles rolled coins without taking up main compartment space.

Now the two IS&V-stocked models in detail, with guidance on which one fits your space and volume.

Model Selection

Which BWB Drop FL Model Fits Your Operation's Space and Volume

The most common BWB Drop Series sizing mistake is matching the model to current cash volume without accounting for growth. If your installation space allows a larger model, buy larger. The upgrade cost now is a fraction of the cost of replacing a safe you have outgrown in two years. How to size a commercial safe for actual volume rather than current need.

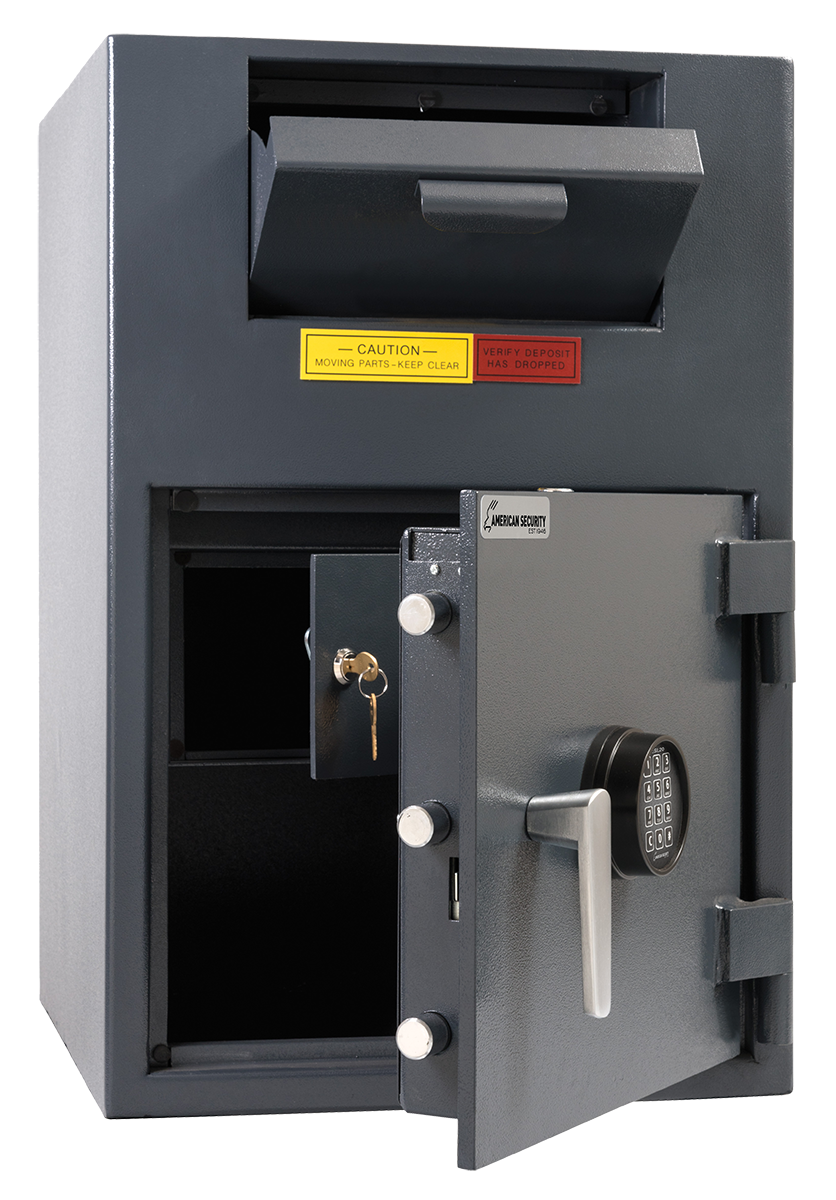

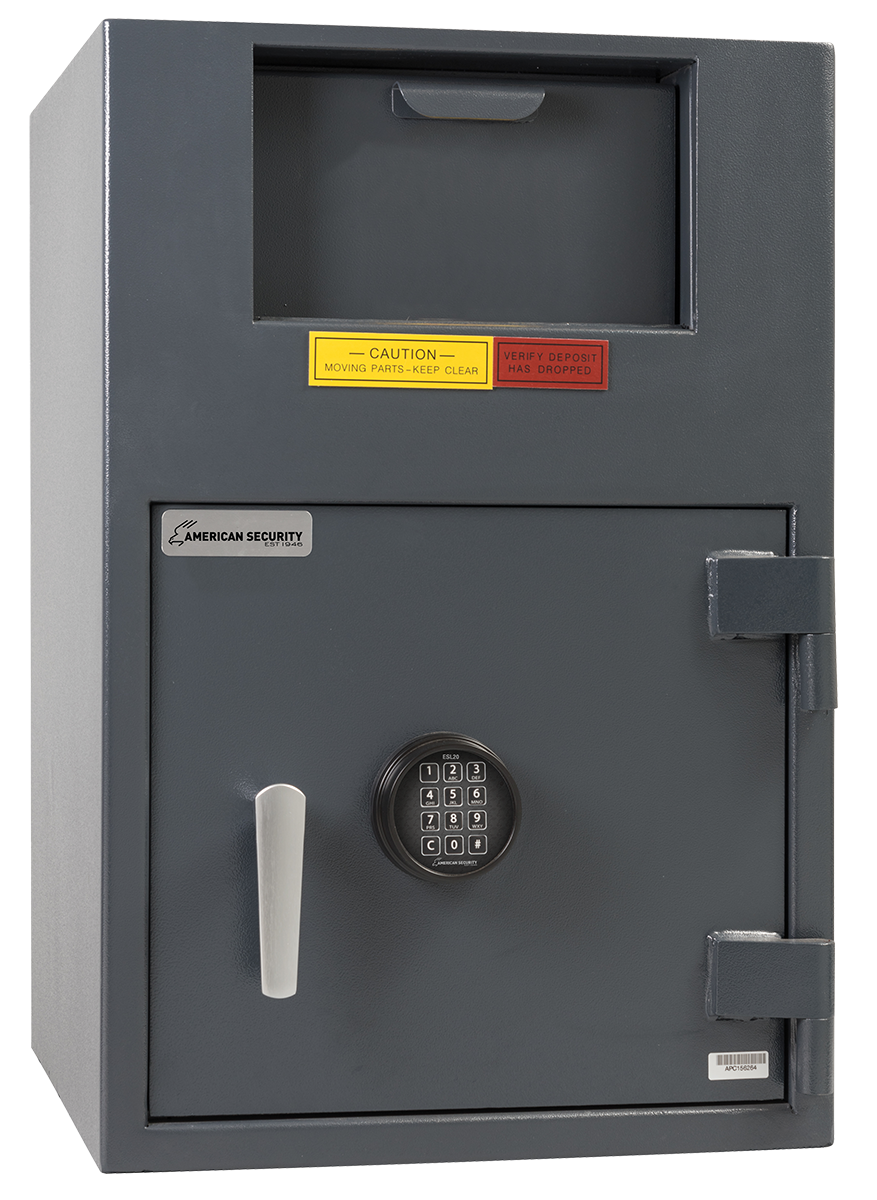

BWB2020FL: Under-Counter Front-Load Depository

Exterior: 29-3/4" H × 20" W × 20" D • Door clearance: 14-3/4" H × 16-1/4" W • Weight: 218 lbs • Interior: 1.74 cu. ft. • Lock: UL Type 1 ESL10 electronic

At 29-3/4" tall, the BWB2020FL fits under a standard 30-inch counter with minimal clearance. This is the right model when the installation position is genuinely height-constrained: a fixed-height counter, a cabinet built-out, or a back-bar installation where the taller models will not fit. At 218 lbs it is manageable for two-person placement with proper equipment. Interior capacity at 1.74 cu. ft. suits businesses with moderate daily cash volume and regular end-of-day retrieval. If your cash volume is growing and the installation space can accommodate a taller model, start with the BWB3020FL instead.

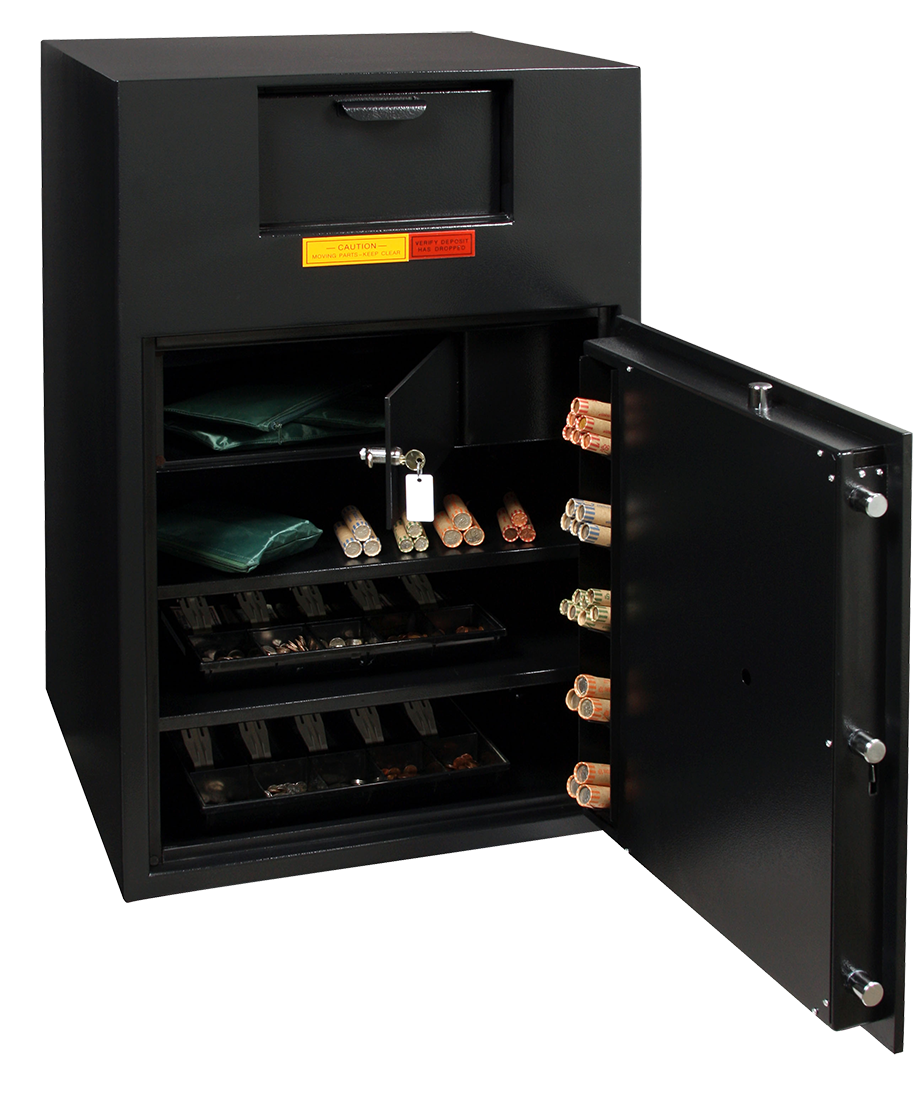

BWB3020FL: Full-Height Front-Load Depository

Exterior: 39-3/4" H × 20" W × 20" D • Door clearance: 24-3/4" H × 16-1/4" W • Weight: 278 lbs • Interior: 3.7 cu. ft. • Lock: UL Type 1 ESL10 electronic

Same 20" width and depth as the BWB2020FL, 10 inches taller. The BWB3020FL's 3.7 cu. ft. interior is more than double the smaller model's capacity, which means more time between management retrieval events, more room for till trays, and more buffer when daily cash volume increases. At 278 lbs, delivery and anchoring require the same approach as the smaller model. This is the right default choice for any installation where height is not the constraint and cash volume is moderate to high. Businesses that start with the BWB2020FL and outgrow it almost always wish they had started here.

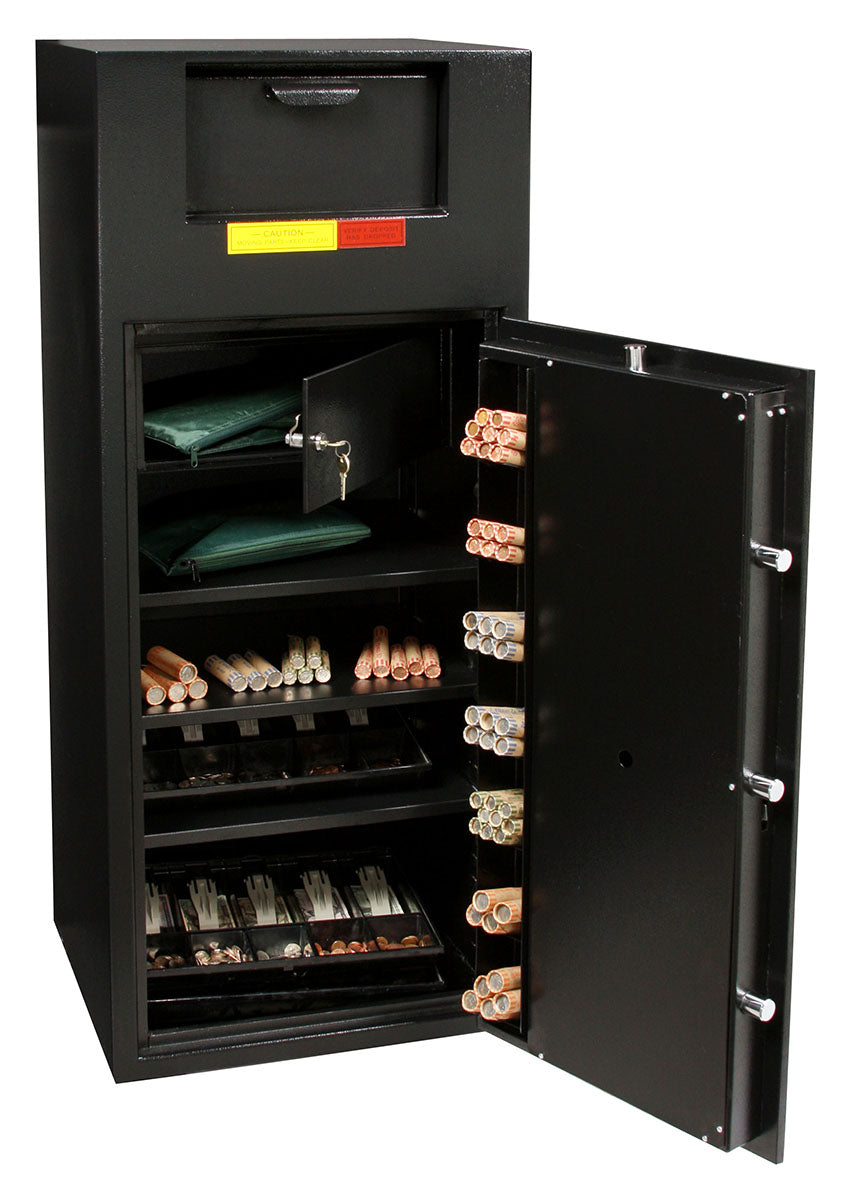

BWB4020FL: High-Capacity Front-Load Depository

Exterior: 49-3/4" H × 20" W × 20" D • Door clearance: 34-3/4" H × 16-1/4" W • Weight: 360 lbs • Interior: 5.63 cu. ft. • Lock: UL Type 1 ESL10 electronic

The largest and heaviest model in the BWB Drop FL lineup. At 5.63 cu. ft. and 360 lbs, the BWB4020FL is built for high-volume operations: multiple registers, extended periods between armored pickups, or operations where till trays for several stations need to be secured at the end of each shift. At 49-3/4" tall it clears standard doorframes without special access planning. At 360 lbs, delivery planning is required and anchoring is strongly recommended. If your operation is at the point where the BWB3020FL fills faster than you would like, this is the right step up within the series. Call us at 208-454-8038 to confirm your access path before ordering.

All three BWB FL models share identical construction: 11-gauge high-strength steel body with reinforced four-side jambs, 1/2-inch solid steel plate door, five-bolt 3-way locking mechanism with auto bolt detent, UL Type 1 ESL10 electronic lock, interior locker with 1/4-inch steel door and single-key camlock (2 keys included), front-load hopper with anti-fish baffle (max package 4" H × 11-1/2" W × 9" D), door-mounted coin rack, and four anchor bolt holes. Model selection is a capacity and space decision, not a construction quality decision.

See It Before You Decide

What Changes When You See the BWB Drop Series in Person

The door and hopper workflow is a hands-on decision

The way the front hopper positions relative to the door, and how the interior locker sits inside the main compartment, reads differently in person than in a diagram. Business owners evaluating the BWB for the first time almost always want to see the deposit sequence in action: drop through the hopper, open the main door, see that the locker is independently secured. Seeing that workflow once makes the operational case for the two-compartment design immediate. Both models are available at our Caldwell showroom.

Height comparison between the two models

The interior volume differences across the three FL models are not something you can gauge accurately from dimensions. Standing in front of the BWB2020FL, BWB3020FL, and BWB4020FL together typically resolves the model decision within a few minutes. If you are not certain which size your operation needs, the showroom comparison is the fastest answer.

Comparing the BWB Drop to the BWB standard and MM Series

We also carry the standard BWB Series (without the drop hopper) and the MM Series (Money Manager, with dual compartment and multiple drop configurations). If you're not certain which commercial safe configuration matches your operation, the showroom comparison makes the distinctions concrete. The MM Series, for example, is the right choice for operations with multiple drop types or shifts that need separate accounting. The standard BWB suits operations that don't need the drop hopper. The BWB Drop sits between them in workflow capability.

Insurance documentation conversation

Bring your current insurance policy or the cash sublimit endorsement page. We can walk through whether the BWB's UL B-Rate satisfies your specific policy language, and we'll provide the product documentation your carrier may require to validate the safe after installation. That conversation goes better before the purchase than after a claim is filed.

"The business owners who come in with their insurance policy in hand almost always leave with a clear answer. The ones who come in without it sometimes have to make a second trip after they call their broker. Bring the policy. The conversation is faster."

Jason, Idaho Safe & Vault, 23 years

What to expect when you visit our Caldwell showroom • Talk through your situation before you visit

Specifications

AMSEC BWB Drop Series: Full Specifications

Security level: 5 of 10 • Insurance rating: Mercantile UL B-Rate • Fire rating: None

Construction

Body steel	11-gauge formed high-strength steel with continuous welds
Jamb construction	Reinforced internal jambs on all 4 sides, sledgehammer rated
Outer safe door	1/2-inch thick solid steel plate door (recessed)
Hopper body	Recessed heavy-duty 1/8-inch body with 1/8-inch hopper door
Interior locker door	1/4-inch heavy steel door with single-key camlock (2 keys included)
Drill protection	Large hardened steel hardplate protecting lock and relockers
Relocking device	Auxiliary spring-loaded relocking device
Insurance rating	Mercantile UL B-Rate
Fire rating	None
Country of origin	Made in the USA

Locking System

Lock type	UL Type 1 ESL10 electronic lock (all three FL models). How UL Type 1 electronic locks compare to standard UL Listed electronic locks.
Locking mechanism	3-way locking with automatic bolt detent engagement on door close
Total locking bolts	5 bolts, 1-inch diameter, chrome-plated steel
Interior locker lock	Single-key camlock, 2 keys included

Depository System

Deposit method	Front-load hopper (FL models)
Baffle type	Anti-fish saw-toothed baffle
Max deposit package	4" H × 11-1/2" W × 9" D
Interior locker dims	5-5/16" H × 19-3/4" W × 13-1/2" D (FL variants)
Hopper door clearance	6" H × 12" W (for 20" W safes)
Coin rack	Door-mounted coin rack for rolled coins
Anchor holes	4 anchor bolt holes

Model Dimensions and Weight

BWB2020FL
Exterior (H×W×D)	29-3/4" × 20" × 20"
Door clearance (H×W)	14-3/4" × 16-1/4"
Weight	218 lbs
Interior capacity	1.74 cu. ft.
Lock	UL Type 1 ESL10 electronic
BWB3020FL
Exterior (H×W×D)	39-3/4" × 20" × 20"
Door clearance (H×W)	24-3/4" × 16-1/4"
Weight	278 lbs
Interior capacity	3.7 cu. ft.
Lock	UL Type 1 ESL10 electronic
BWB4020FL
Exterior (H×W×D)	49-3/4" × 20" × 20"
Door clearance (H×W)	34-3/4" × 16-1/4"
Weight	360 lbs
Interior capacity	5.63 cu. ft.
Lock	UL Type 1 ESL10 electronic

Interior locker dimensions (all FL models): 5-5/16" H × 19-3/4" W × 13-1/2" D. Interior dimensions reflect door clearance; actual usable depth will vary with interior locker placement.

Questions about which model fits your space or insurance requirement?

We're factory-authorized for the full AMSEC commercial lineup. Bring your policy language and your installation dimensions. We'll confirm the right configuration before you order.

Talk to Our Team

Placement and Installation

Where You Put the BWB Drop Series Determines How It Works

Placement for a commercial depository safe is an operational decision as much as a security one. The safe needs to be accessible to employees for drops, accessible to management for retrievals, positioned out of customer view, and anchored so it can't be carried out.

At 218 to 278 lbs, neither BWB model is light enough to ignore the anchoring question. An unanchored safe at this weight can be moved with the right equipment. Anchored to a concrete slab or structural floor through the four pre-drilled anchor holes, it requires significantly more time and effort to remove than most commercial burglary attempts will sustain. We recommend anchoring on every commercial install and handle it for customers who want us to. What placement and anchoring decisions do for commercial safe protection.

Under-counter positioning (BWB2020FL): At 29-3/4" tall, this model fits under a standard 30-inch counter with the hopper accessible from standing height. Confirm the counter's structural support before anchoring through the safe floor into the substrate below. Under-counter anchoring on a wood substrate requires lag bolts into the structural framing, not just the cabinet floor.
Floor position (BWB3020FL and BWB4020FL): Both taller models are free-standing floor units. Concrete slab is the preferred anchor substrate. For businesses in Canyon County with slab construction, we check for post-tension cables before drilling on every commercial install, which is standard practice in newer commercial construction in the Treasure Valley.
Deposit slot access: Position the safe so the hopper is accessible to employees from their normal working position without requiring them to crouch, reach awkwardly, or have the drop slot facing away from the work area. Awkward deposit positions lead to employees bypassing the safe during busy periods.
Customer visibility: Keep the safe out of customer sightlines where practical. A safe that is visible from the customer side of the counter becomes a target for planned robberies. Back-of-house positioning, inside a cabinet, or behind a service counter barrier are all more secure placements than an open floor position visible from the sales floor.
Access path for delivery: Both models are 20 inches wide and 20 inches deep. Confirm your door clearances and any hallway turns before scheduling delivery. At 218 to 278 lbs, these safes require proper equipment and a clear access path. Installation situations worth a conversation before you commit to a position.

Placement is about where the safe ends up. Delivery is about how it gets there. That is next.

Delivery & Installation

How We Deliver and Install the AMSEC BWB Drop Series

The BWB Drop FL lineup ranges from 218 to 360 lbs. Standard freight drops a safe at your front door and considers the job done. That means you're responsible for moving it to the installation position, placing it correctly, and anchoring it. Our in-house delivery service handles all of that. Our complete commercial delivery and installation process.

What delivery day looks like: Jason or Merlin leads every commercial delivery. They bring the right equipment for the weight class, assess the access path from the entry to the final installation position, and place the safe where it will operate, not at the building entrance. For under-counter installations, that includes confirming the counter support, positioning for hopper access, and completing the anchor installation if requested. What to expect when our delivery team arrives.

Anchoring matters more in a commercial setting than most buyers realize. A commercial location that is locked and unoccupied overnight has a different risk profile than a residential safe in a home with people present. An anchored safe that requires significant time and equipment to remove gives you the protection the UL B-Rate was built to provide. An unanchored safe at this weight class can be tipped, removed, and attacked elsewhere. We recommend anchoring and will handle it on every commercial installation for customers who want us to.

Idaho Safe & Vault Delivery Insight:

"Commercial installations have one variable that residential ones don't: the business can't stop operating for a long installation window. We time commercial deliveries around your schedule, and we work quickly because we know every hour we're there is time your business isn't running normally. The access path conversation before we arrive is what makes that possible."

Merlin, Idaho Safe & Vault, 16 years

Thinking About Moving the Safe Yourself?

At 218 to 278 lbs, DIY delivery is physically manageable with the right equipment and enough help. What goes wrong most often in commercial DIY installs: attempting the installation with inadequate lifting equipment (a standard hand truck rated to 150 lbs is insufficient), not planning for the anchor substrate in advance, or placing the safe in a position that makes the hopper inaccessible from normal working height. Under-counter anchoring into a cabinet base rather than the structural floor is also a common error that leaves an unanchored safe in what looks like an anchored position. When DIY commercial safe installation works and when it doesn't.

If you've read through the full picture, here is the short summary for business owners ready to make the call.

Decision Summary

How to Know If the AMSEC BWB Drop Series Is the Right Call for Your Business

If you've read through the full profile, here is the short version.

Buy the BWB Drop if:

Your business requires a UL B-Rated mercantile safe to satisfy your insurance policy's cash sublimit requirement.
You need employees to drop cash without access to the main safe, and you need those deposits separated from the main compartment until management retrieval.
Your installation space fits a 20"-wide footprint. Choose BWB2020FL for under-counter, BWB3020FL for standard floor position, BWB4020FL for high-volume operations.
You want a UL Type 1 electronic lock with programmable user codes for shift management.

Step back if:

You only need a single-access cash safe with no drop workflow. A standard BWB Series without the hopper is simpler and costs less if employees aren't doing shift drops.
Your primary need is fire protection. This product has no fire rating. A combined fire-burglary product is required if fire protection is part of your coverage requirement.

Step up if:

Your insurer or commercial account requires TL-rated protection or a cash sublimit that exceeds what B-rated construction covers. That starts with the AMSEC ACF Series.
Your operation has multiple shift types needing separately accounted deposits. The MM Series with dual compartments and color-coded drop chutes is the right configuration for that workflow.
You need through-the-wall rear-deposit capability. That is the AMSEC DSR Series.

How to make this decision confidently addresses the hesitation points most business owners hit in the final stage.

Final guidance: If your installation space allows any of the three models, default to the largest your space and budget support. The BWB4020FL's 5.63 cu. ft. gives you the most buffer for volume growth. If the insurance requirement, the deposit workflow, and the installation dimensions all align with the BWB Drop Series, call us to confirm the right model before ordering. The 10-minute phone call prevents a delivery problem.

Common Questions

AMSEC BWB Drop Series: Frequently Asked Questions

Does the UL B-Rate on the BWB Drop Series satisfy my small business insurance requirement?

The UL B-Rate is the benchmark most small business property insurance policies use to establish cash sublimits for money on premises. Whether it satisfies your specific policy depends on the language in your cash sublimit endorsement. Most mercantile policies that require a rated safe specify UL B-Rated or equivalent as the minimum threshold, which the BWB Drop Series meets through its construction certification. Before purchasing, pull your policy's cash sublimit endorsement and confirm the rating requirement with your broker. We can provide the BWB's UL documentation when you order. What UL ratings mean for commercial insurance documentation.

What is the difference between the three FL models?

Both models share identical construction: same body gauge, same door, same bolt system, same lock, same hopper, same interior locker. The differences are height, interior volume, and weight. The BWB2020FL at 29-3/4" tall holds 1.74 cu. ft. at 218 lbs, the under-counter option. The BWB3020FL at 39-3/4" tall holds 3.7 cu. ft. at 278 lbs, the standard floor choice. The BWB4020FL at 49-3/4" tall holds 5.63 cu. ft. at 360 lbs, built for high-volume operations. If your installation space allows any of the three, buy the largest your volume and budget support.

Can employees access the interior locker when they make a drop?

No. Cash dropped through the front hopper goes into the interior locker, which has its own 1/4-inch steel door secured by an independent camlock keyed separately from the main door. An employee making a drop through the hopper has no access to the locker contents. A manager who opens the main door to access the main compartment does not automatically access the locker either. The locker requires the locker camlock key, which should be held separately from the electronic combination. This separation is the core operational security feature of the two-compartment design.

The auto bolt detent locks the door automatically. Do employees still need to do anything after closing the door?

The bolt detent engages the boltwork when the door is fully closed, which means a fully closed door is a locked door without any additional locking action. Employees do not need to turn a handle or enter a code to lock the door after it closes. What they do need to do is ensure the door is fully closed. The detent does not engage on a partially closed door, and it does not compensate for a door left slightly ajar. Train your team to confirm the door is fully seated after every access event. The auto-lock handles the security; closing the door is still a human step.

Does the BWB Drop Series have fire protection?

No. The BWB Drop Series does not carry a fire rating. Its construction is optimized for burglary resistance and cash management workflow. If your business requires fire protection for cash, documents, or valuables on premises, you need a fire-rated product alongside or instead of the BWB. The AMSEC BF or BFS Series provides combined fire and burglary protection for businesses that need both certifications. Talk to us about whether fire protection is part of your insurance or lease requirement before committing to a cash-management-only product.

How does delivery and installation work for a commercial location?

At 218 to 278 lbs, both BWB Drop models require proper equipment and an assessed access path. Our in-house team, led by Jason or Merlin, handles commercial deliveries with the same approach as residential: they arrive with the right equipment, walk the access path, place the safe at the final installation position, and complete the anchor installation if requested. For commercial accounts, we schedule around your business hours. What to expect when our delivery team arrives.

The BWB4020FL at 360 lbs warrants a pre-delivery conversation. At 49-3/4" tall and 360 lbs, confirm your access path, door clearances, and floor load rating before we schedule delivery. Call 208-454-8038 if the installation involves stairs, a tight corridor, or any access constraint. That five-minute call prevents a two-hour problem on delivery day.

What happens if an employee forgets the combination or a code needs to be changed?

The UL Type 1 ESL10 electronic lock allows user codes to be added, changed, and deleted by the administrator code holder without a service call. When an employee leaves or codes need to be rotated, that is a manager-level function on the lock itself. If the lock needs service beyond code management, or if a lock malfunction occurs, we handle AMSEC lock service in-house at our Caldwell location. You are not routing a service call through a national warranty center. Call us and we resolve it directly.

Keep Going

Three Resources That Help You Make This Decision Confidently

What UL ratings actually certify and which ones your business insurance is likely to require

The difference between a UL B-Rate, a UL RSC rating, and a TL rating is not just a number on a sticker. This guide explains what each certification tests, what it verifies, and how to match the right rating to your specific insurance policy language before you purchase.

Read the Guide

What our commercial delivery and installation service covers from order to anchored placement

A step-by-step picture of what an in-house commercial delivery looks like: access path assessment, working around business hours, placement to the final position, and anchor installation. What to prepare before we arrive so the job runs without surprises.

Read the Guide

How to match a safe to your actual risk profile rather than the cheapest option that fits the space

Understanding your risk first, then selecting a safe, is the order that prevents regret. This guide walks through the questions: what is the cash exposure, what does the insurance require, what is the realistic threat, and which safe construction tier addresses all three without over-buying for what you don't need.

Read the Guide

Ready to Move Forward

Let's Find the Right BWB Drop Series Configuration for Your Business

We're a factory-authorized AMSEC dealer with 32 years of commercial and residential safe experience across Western Idaho and Eastern Oregon. Model selection, insurance documentation, delivery access, and installation planning are all part of the conversation. Commercial safe decisions go faster over a phone call than a product page.

Talk to a Safe Expert

Call 208-454-8038 • Mon–Fri 10am–6pm • Sat 10am–4pm

Not sure this is the right safe type for your situation? Start with the protection quiz.

Take the two-minute protection level quiz

What to expect when you visit our Caldwell showroom • The ways to reach us before you commit
